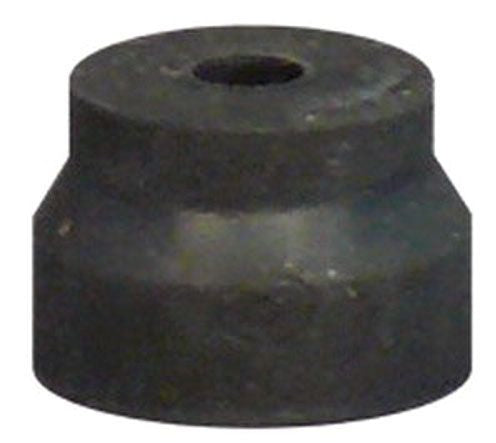

Appleton CGG323 Neoprene Grommet 0.625-0.750 Inch

Product Description

The APPLETON CGG323 is a neoprene grommet designed to seal and protect wiring, tubing, or cables passing through panel knockouts, enclosures, or conduit openings. The grommet fits wire or conduit openings ranging from 0.625 inches to 0.750 inches, providing a snug, flexible seal that cushions conductors against abrasion and helps maintain enclosure integrity. Neoprene construction offers resistance to oils, moisture, and temperature variation common in industrial and commercial electrical installations. Electricians and panel builders install this grommet as a code-compliant edge protection solution at enclosure entry points.

The CGG323 is suited for use in electrical enclosures, junction boxes, control panels, and equipment cabinets where conductors or tubing must pass through a metal or plastic wall. It is appropriate for both indoor and outdoor applications where neoprene material performance is acceptable. The grommet is commonly used in commercial and light industrial settings during new construction, panel assembly, or retrofit work where wire protection at knockout entries is required.

Key Features

• Neoprene material resists oils, moisture, and moderate temperature extremes
• Fits opening sizes from 0.625 inches to 0.750 inches
• Cushions and protects conductors from sharp metal edges at panel knockouts
• Flexible design allows quick snap-in installation without tools
• Helps maintain enclosure protection ratings at wire entry points

Compatibility

Designed as an OEM-style replacement or new-installation grommet for electrical enclosures, junction boxes, and control panels with knockout openings in the 0.625 inch to 0.750 inch range.

Installation Notes

Installation is performed by a licensed electrician in accordance with applicable NEC requirements for conductor protection at enclosure openings. De-energize the enclosure completely before installing or servicing any components at wire entry points. The grommet is pressed into the knockout opening by hand; no special tools are required. Verify the opening diameter falls within the 0.625 inch to 0.750 inch range before installation to ensure a proper seal and secure fit.

Technical Specifications

• Material: Neoprene
• Fitting Size Range: 0.625 to 0.750 inches
• Weight: 1.000 pound per 100 units
• UPC: 78138139631

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CGG323
