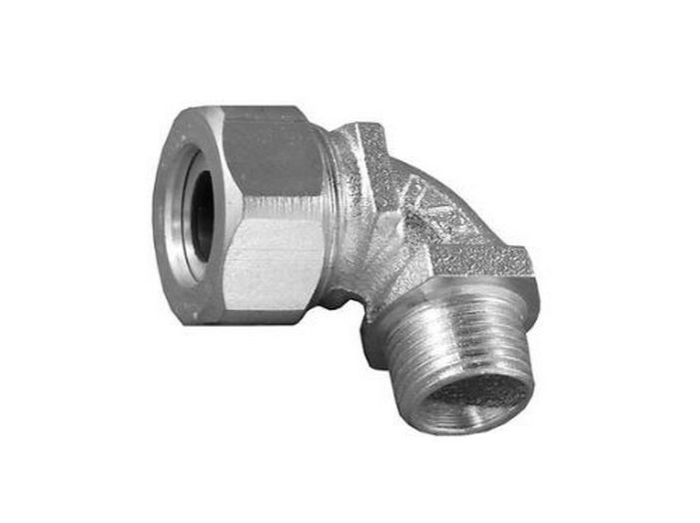

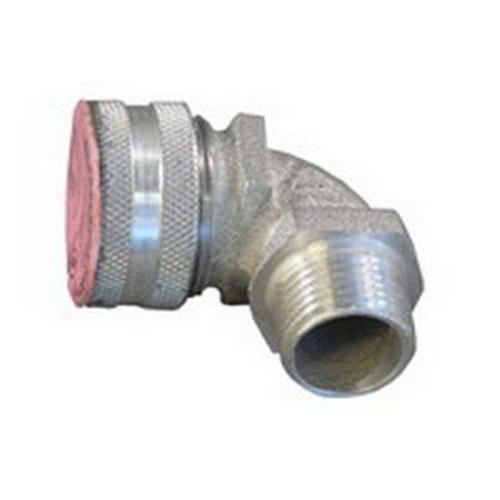

Appleton CG90-75100 1 inches Aluminum 90D Cord Connector

Product Description

The APPLETON CG90-75100 is a 1" aluminum 90D cord connector. These liquidtight strain relief cord and cable connectors are available in straight or 90 degrees, aluminum or steel construction to meet the requirements of rugged service in all non-hazardous areas. They provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable.

• Provides a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
• Seals electrical connections against dust and dirt, oil, water or other atmosphere containing moisture
• Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed

Product Highlights

The APPLETON CG90-75100 1" aluminum 90D cord connector is ideal for use in wet or dry locations. It is suitable for use with flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG90-75100
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: CG90-75100
• Manufacturer: Appleton
• Product Series: CG
• Family Series: Appleton Cable Entries, CG Series
• Description: 90 DEG Liquidtight Strain Relief Connector, Size: 1 IN, Conductor Range: 3/4 - 7/8 IN, Material: Cast Aluminum, Color: Gray Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Standard: Class I, Division 2, Class II, Division 1 And
• Hub Size: 1 NPT
• Number of Cables: 1
• Cable Style: Round
• Angle: 90 Degrees
• NEMA Rating: NEMA 3R
• Split Frame: No
• Cable Diameter Range: 0.75-0.88 "
• Type: Bushing Grip with Strain Relief
• Composition: Metallic
• Material: Aluminum
• Hazardous Location: No
• Approvals: CSA, UL
• Cable Openings: 3/4 to 7/8
• Connection Type: Thread
• Trade Size: 1
• Brand: Appleton Electric
• Country of Origin: United States
• Body Material: Aluminum
