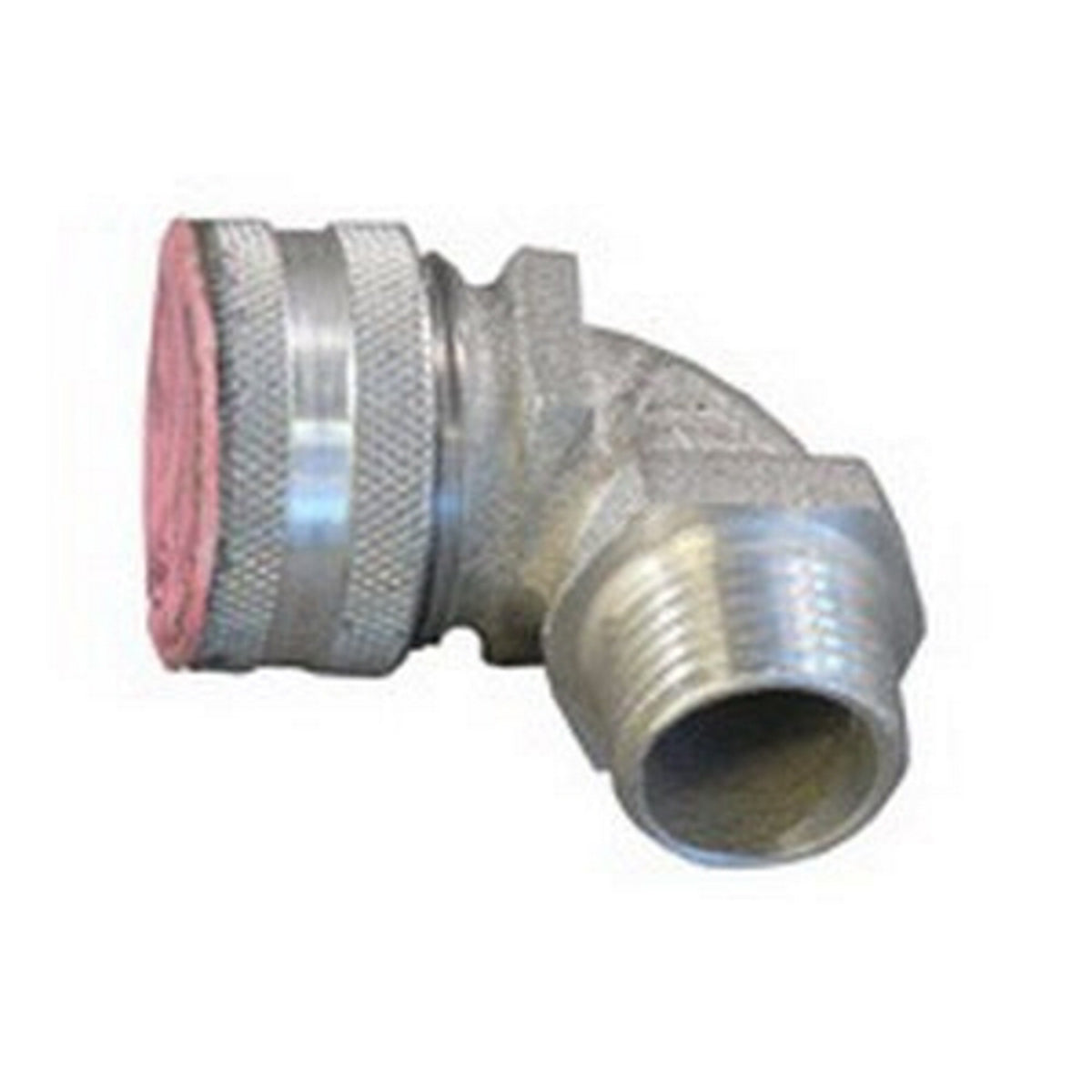

Appleton CG90-6275 3/4 Aluminum Liquidtight Cord and Cable Connector

Product Description

The Appleton CG90-6275 is a three-quarter inch liquidtight strain relief connector made of cast aluminum. It is built for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. This connector is recognized for its NEMA 3R rating, ensuring protection against moisture and other environmental factors.

• Catalog number CG90-6275
• Conductor range from five-eighths inch to three-quarter inch
• Connection type is threaded hub

Product Highlights

This connector is suitable for both wet and dry locations and meets various industry standards such as Class I, Division 2, and Class II, Division 1 A. Its color-coded identification helps installers quickly understand the minimum and maximum cable diameter ranges.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Material: Cast Aluminum
• Color: Orange Label
• Connection: Threaded Hub
• NEMA Rating: 3R
• Trade Size: 3/4 Inch
• UPC: 781381189859
• Applications: Suitable for flexible cables and control cords
• Conductor Range: 5/8 - 3/4 IN
