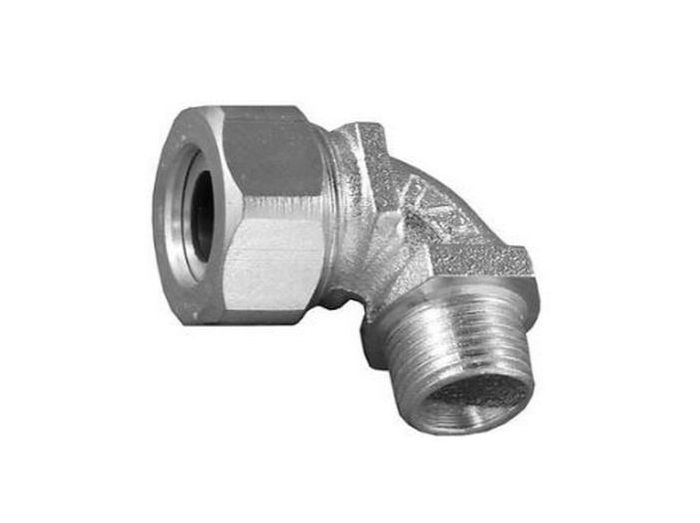

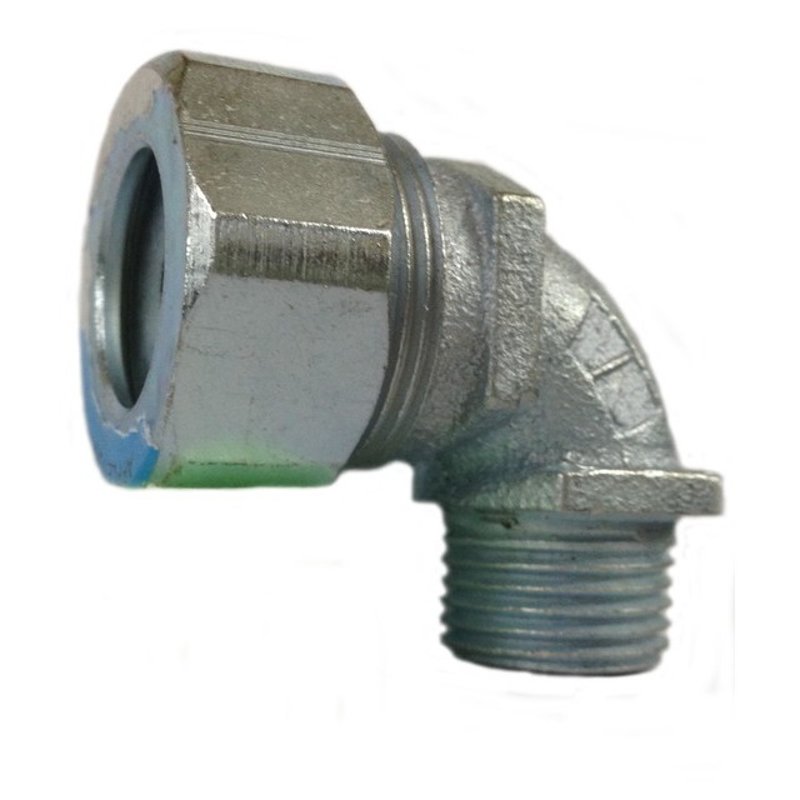

Appleton CG90-6250S 1/2 inches Steel 90D Cord Connector

Product Description

The APPLETON CG90-6250S is a 1/2" steel 90D cord connector. These liquidtight strain relief cord and cable connectors are available in steel construction to meet the requirements of rugged service on all types of equipment and in all non hazardous areas.

• Provides a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable.
• Ideal for use in wet or dry locations
• Seals electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.

Product Highlights

Appleton's liquidtight connectors are suitable for connecting flexible cords and cables to equipment or enclosures, ensuring a secure and protected connection in various environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG90-6250S
• Country of Origin: USA

Technical Specifications

• Diameter: 1/2 in
• Material: Steel
• Diameter Range: 0.625 - 0.750 in
• Manufacturer Part Number: CG90-6250S
• Manufacturer: Appleton
• Product Series: CG
• Family Series: Appleton Cable Entries, CG Series
• Description: 1/2 IN STL L-T CRD&CBL CONN
• Hub Size: 1/2 NPT
• Number of Cables: 1
• Cable Style: Round
• Angle: 90 Degrees
• NEMA Rating: NEMA 3R
• Split Frame: No
• Cable Diameter Range: 0.63-0.75 "
• Type: Bushing Grip with Strain Relief
• Composition: Metallic
• Hazardous Location: No
• Approvals: CSA, UL
• Cable Diameter: 0.63" to 0.75"
• Cable Diameter (mm): 15.88 mm to 19.05 mm
• Grip Type: Bushing Grip With Strain Relief
• Hazardous Rated: No
• Maximum Cable Diameter (in): 0.75"
• Maximum Cable Diameter (mm): 19.05 mm
• Minimum Cable Diameter: 0.625"
• Minimum Cable Diameter (in): 0.625"
• Minimum Cable Diameter (mm): 15.88 mm
