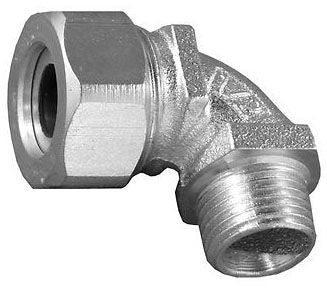

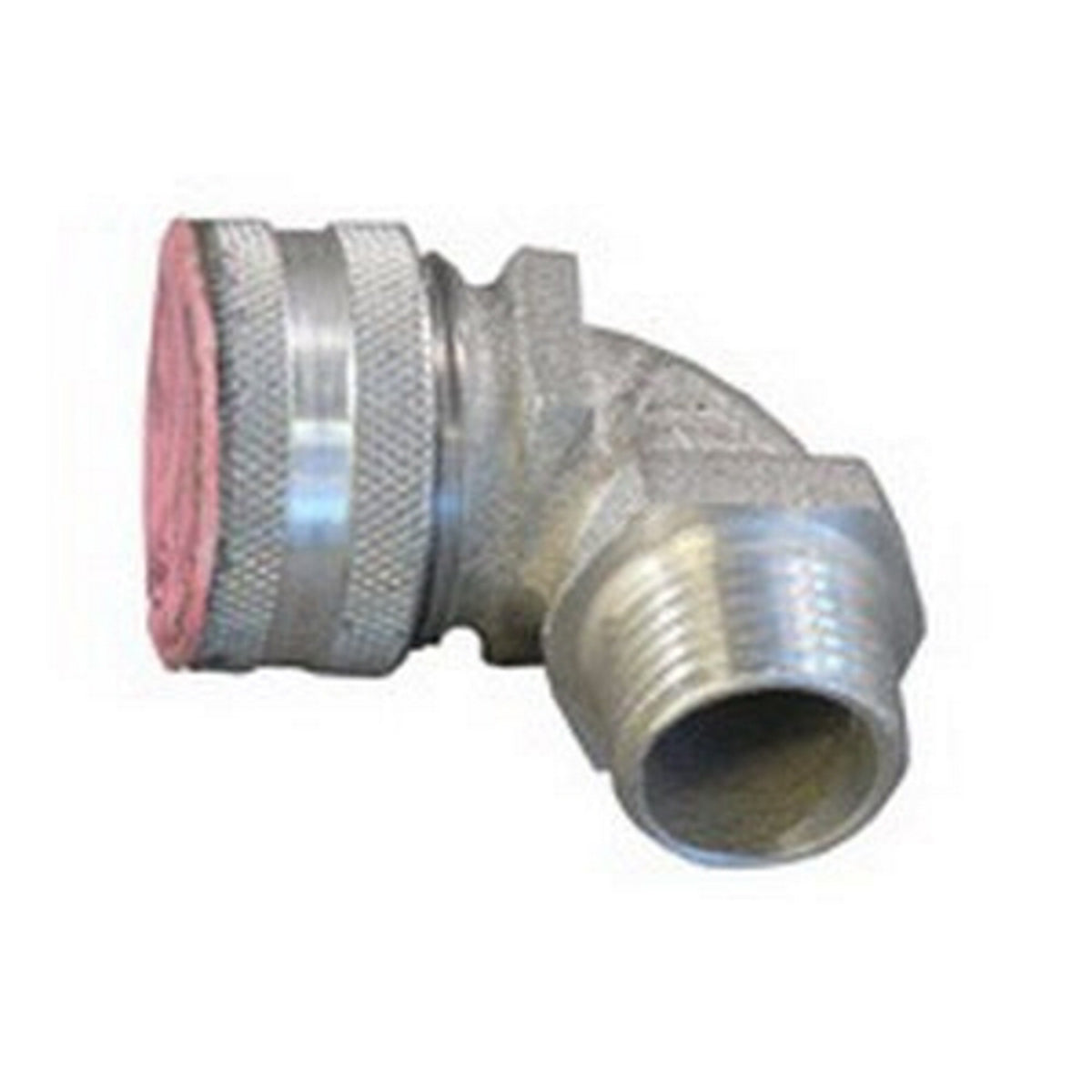

Appleton CG90-6250 90 deg Liquidtight Strain Relief Cord & Cable Connector 1/2 inch

Product Description

The Appleton CG90-6250 is a 90-degree liquidtight strain relief cord and cable connector made from cast aluminum. This connector is designed to accommodate conductors ranging from five-eighths to three-quarters of an inch in diameter. It is suitable for use in both wet and dry locations, ensuring reliable performance in various environments.

• Constructed from cast aluminum with copper-free aluminum components
• NEMA rating of 3R for moisture protection
• Designed for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable

Product Highlights

This strain relief connector features a threaded hub connection for secure fitment. The neoprene sealing grommet maintains a firm grip on cable jackets, providing strain relief while safeguarding internal wiring connections.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: CG90-6250

Technical Specifications

• Material: Cast aluminum
• NEMA Rating: 3R
• Conductor Range: 5/8 - 3/4 inch
• Connection: Threaded hub
• Application: Liquidtight, strain relief, dry, wet, and hazardous locations
• Size: 1/2 inch
• Approval: UL 514B, CSA C22.2
• Country of Origin: Mexico
