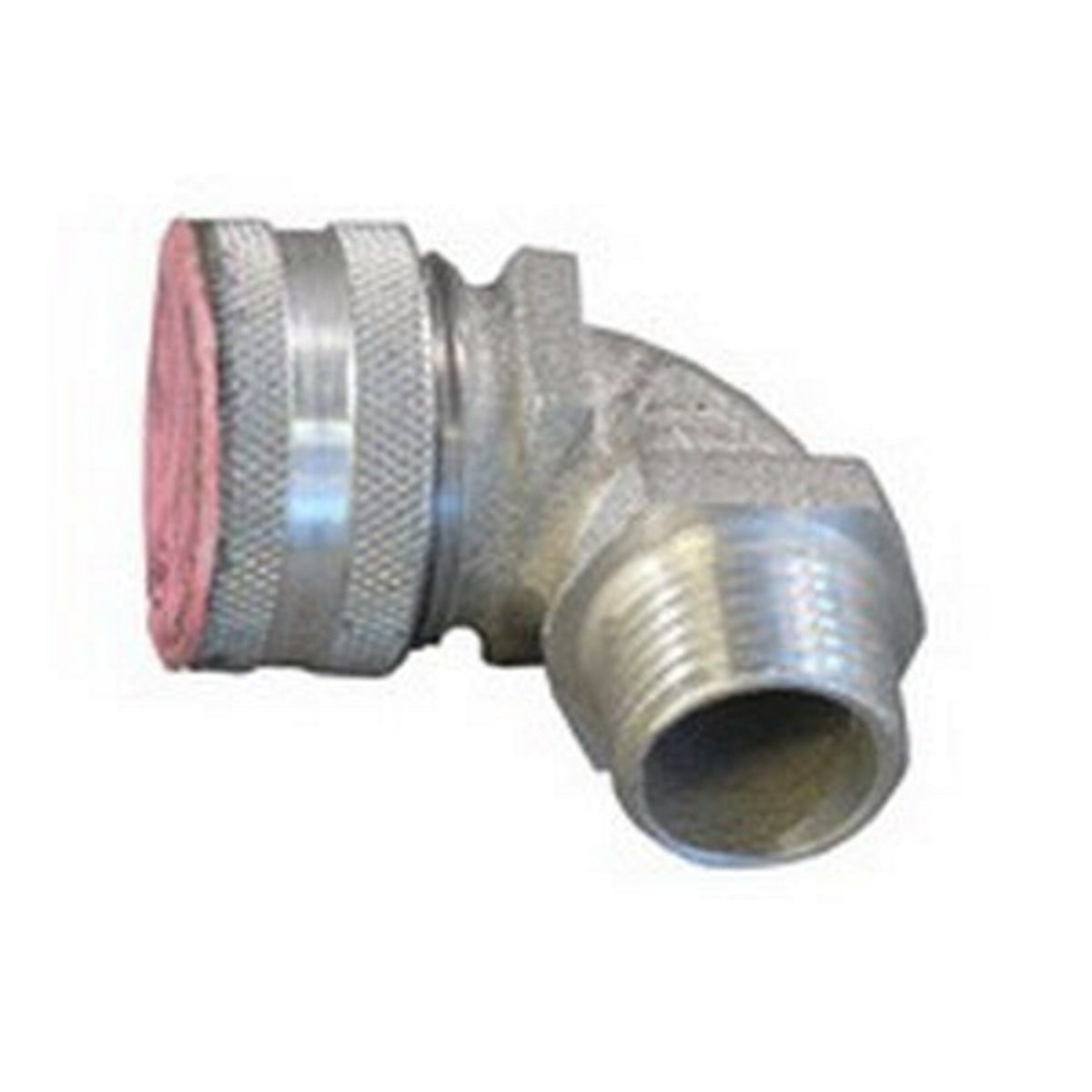

Appleton CG90-62100 90 Deg Liquidtight Strain Relief Cord & Cable Connector, 1 Inch, 0.625 - 0.75 Inch Conductor

Product Description

The APPLETON CG90-62100 is a 90 DEG Liquidtight Strain Relief Connector. It is designed for use in wet or dry locations, sealing electrical connections against dust and dirt, oil, water, or other moisture-containing atmospheres. The connector features a color-coded label indicating the catalog number and cable diameter range.

• Seals electrical connections against dust, dirt, oil, and moisture.
• Color-coded label indicates catalog number and cable diameter range.
• Neoprene sealing grommet provides strain relief.

Product Highlights

This liquidtight strain relief connector provides a secure and environmentally protected connection for flexible cords and cables.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG90-62100
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: CG90-62100
• Manufacturer: Appleton
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Application: For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
• Conductor Range: 5/8 - 3/4 IN
• Connection: Threaded Hub
• Material: Cast Aluminum
• NEMA Rating: 3R
• Standard: Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178
• UPC: 781381190053
• GTIN: 00781381190053
• Item Type: 90 DEG Liquidtight Strain Relief Connector
• Size: 1 IN in
• Angle: 90 0
• Connection Type: Threaded
• Trade Size: 1 in
• Cable Openings: 5/8 to 3/4 in
• Diameter: 1 in
• Diameter Range: 0.625 - 0.750 in
• Conduit Type: Liquid-Tight
• Thread Size: 1"
• Accessory Type: Cord Grip
