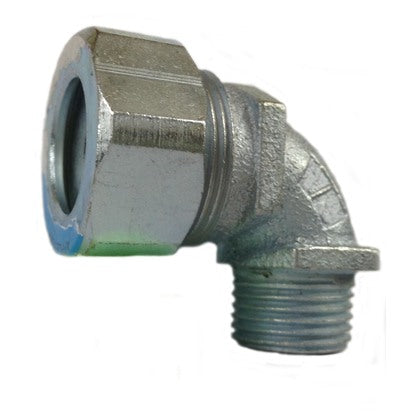

Appleton CG90-5075S 3/4 inches Steel 90D Cord Connector

Product Description

The Appleton CG90-5075S 3/4" Steel 90D Cord Connector provides a liquidtight and strain relief termination for flexible neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for wet or dry locations, sealing electrical connections against dust, dirt, oil, and moisture.

• Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed
• Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
• Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion

Product Highlights

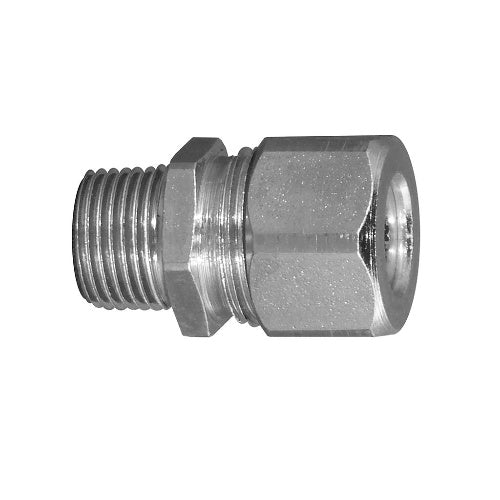

This cord connector is suitable for use in non-hazardous areas on all types of equipment. It is available in straight or 90 degree configurations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG90-5075S

Technical Specifications

• Component: Cable Connector
• Manufacturer: Appleton
• Brand: Appleton Electric
• UNSPSC: 39121431
• Material: Steel
• Trade Size: 3/4
• Application: Used to provide a liquidtight and strain relief termination for flexible type neoprene, hypalon and PVC jacketed power or control cord and cable and for use in wet or dry locations
• Connection Type: 90 Degree Male
• Angle: 90
• Diameter: 3/4 in
• Diameter Range: 0.500 - 0.625 in
• OD Max: 0.63 in.
• OD Min: 0.5 in.
• OD - min-max average: 0.55 in
• Type: Flexible Cord Connector
• Hub Size: 3/4 in.
• Connection Rating: Liquid-tight
