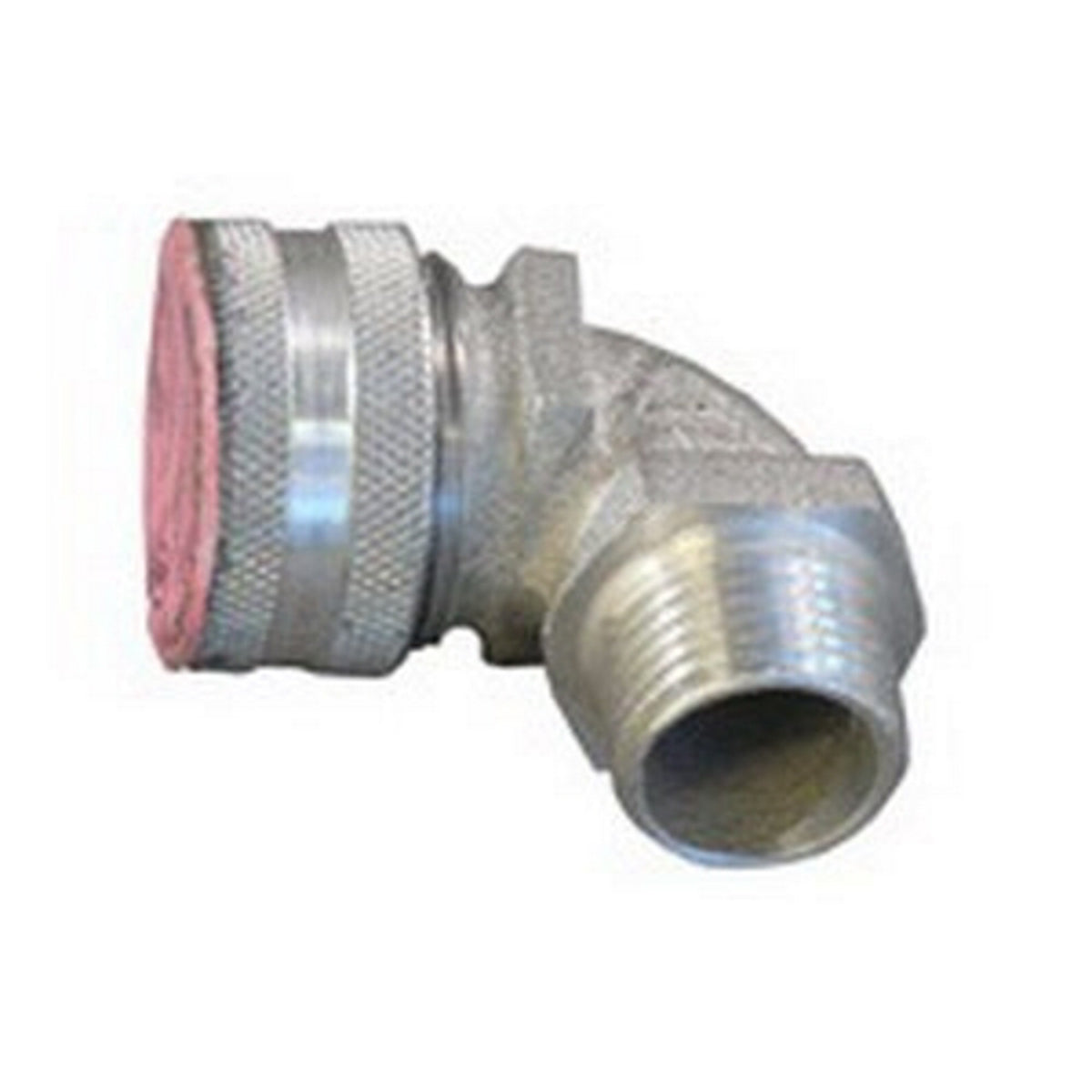

Appleton CG90-5075 90 deg Liquidtight Strain Relief Cord & Cable Connector 3/4 inch

Product Description

The APPLETON CG90-5075 is a 90 DEG Liquidtight Strain Relief Connector. It is designed for use in wet or dry locations, sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture. It provides a liquidtight and strain relief termination for flexible type neoprene, hypalon and PVC jacketed power or control cord and cable.

• For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture
• Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed
• Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord

Product Highlights

This liquidtight strain relief connector is ideal for connecting cables in demanding environments, providing a secure and protected termination.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG90-5075
• Country of Origin: USA

Technical Specifications

• Catalog Number: CG90-5075
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Application: For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
• Conductor Range: 1/2 - 5/8 IN
• Connection: Threaded Hub
• Material: Cast Aluminum
• NEMA Rating: 3R
• Standard: Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178
• UPC: 781381189750
• GTIN: 00781381189750
• Item Type: 90 DEG Liquidtight Strain Relief Connector
• Size: 3/4 IN in
• Angle: 90 0
• Connection Type: Threaded
• EU RoHS Indicator: C
• Cable Openings: 1/2 to 5/8 in
• Trade Size: 3/4 in
