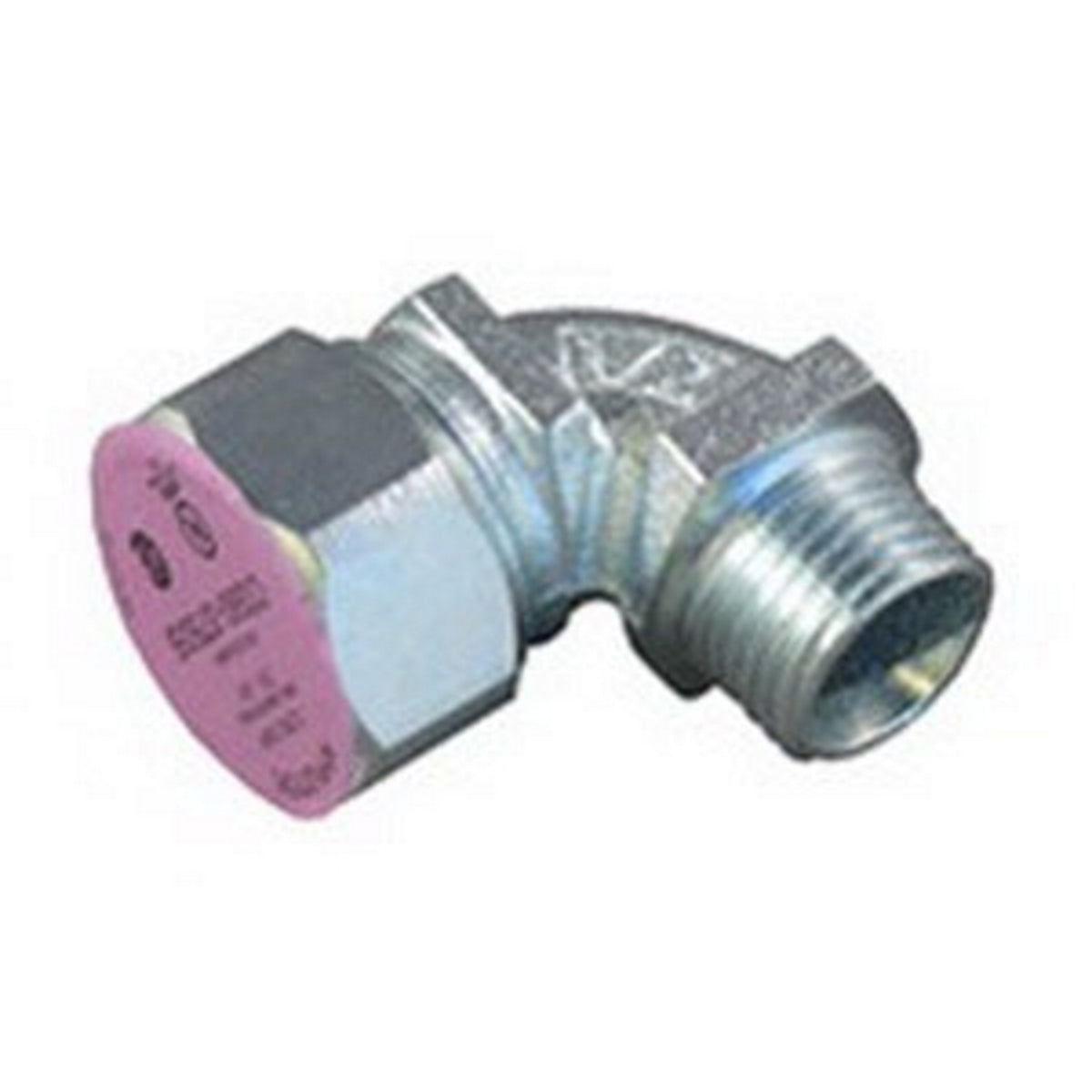

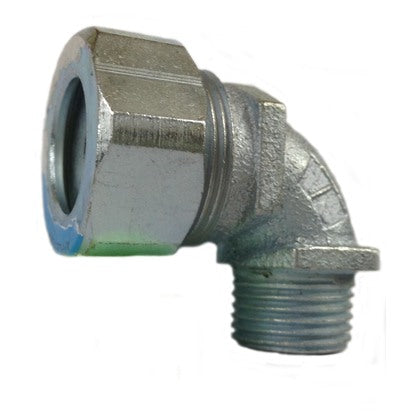

Appleton CG90-5050S 90 deg Liquidtight Strain Relief Cord & Cable Connector 1/2 inch

Product Description

The APPLETON CG90-5050S is a 90-degree liquidtight strain relief cord and cable connector. It provides a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. It is ideal for use in wet or dry locations, sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.

• Seals electrical connections against dust, dirt, oil, and moisture in wet or dry locations.
• Color-coded label indicates catalog number and cable diameter range.
• Neoprene sealing grommet provides strain relief and protects internal wiring.

Product Highlights

This liquidtight strain relief connector is suitable for flexible cords and cables, providing a secure and sealed termination in various environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG90-5050S
• Country of Origin: USA

Technical Specifications

• Catalog Number: CG90-5050S
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Application: Used to provide a liquidtight and strain relief termination for flexible type neoprene, hypalon and PVC jacketed power or control cord and cable and for use in wet or dry locations
• Color: Pink Label
• Conductor Range: 1/2 - 5/8 IN
• Connection: Threaded Hub
• Material: Malleable Iron
• NEMA Rating: 3R
• Special Features: For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Machined steel cap; Neoprene sealing grommet; Remove sufficient outer covering of cord or cable to pass conductors through connector body
• Standard: Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178
• UPC: 781381449045
• GTIN: 00781381449045
• Item Type: 90 DEG Liquidtight Strain Relief Connector
• Size: 1/2
• Diameter: 1/2 in
• Diameter Range: 0.500 - 0.625 in
• MPN: CG90-5050S
• Product Series: CG
• Family Series: Appleton Cable Entries, CG Series
• Description: 1/2 IN STL L-T CRD&CBL CONN
• Hub Size: 1/2 NPT
• Number of Cables: 1
• Cable Style: Round
• Angle: 90 Degrees
• Split Frame: No
• Type: Bushing Grip with Strain Relief
• Composition: Metallic
• Hazardous Location: No
• Approvals: CSA, UL
• UNSPSC: 39121431
• Trade Size: 1/2
• Connection Type: Thread
