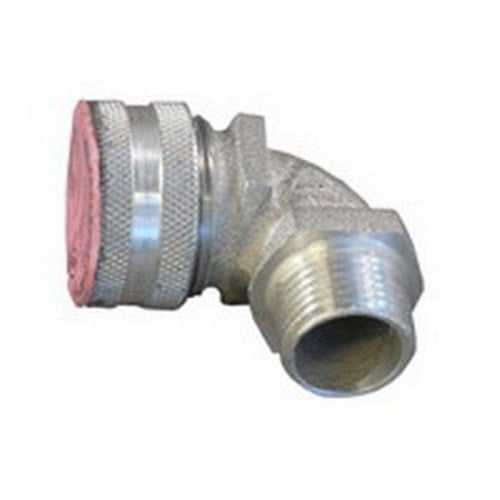

Appleton CG90-5050 Liquidtight Strain Relief Connector 1/2 in (1/2 to 5/8 in Cable Openings)

Product Description

The Appleton CG90-5050 is a liquidtight strain relief connector designed for use with flexible type neoprene, hypalon, and PVC jacketed power or control cords. This connector features a threaded hub and is made from cast aluminum, ensuring durability in both wet and dry locations. The device is capable of protecting electrical connections from dust, dirt, oil, and moisture, making it suitable for rugged service environments.

• Trade size: 1/2 in with cable openings from 1/2 to 5/8 in
• Constructed from cast aluminum with neoprene sealing grommet
• Suitable for Class I, Division 2 and Class II, Division 1 environments

Product Highlights

This strain relief connector provides a reliable liquidtight termination for various cable types, meeting the safety standards required in commercial and industrial applications.

Product Information

Standard Information

• Manufacturer: Appleton
• Part Number: CG90-5050

Technical Specifications

• Angle: 90 deg
• Material: Cast Aluminum
• Dimensions: 1-1/4 in OD
• Trade Size: 1/2 in
• Cable Openings: 1/2 to 5/8 in
• Connection Type: Thread
• NEMA Rating: 3R
• Country of Origin: Mexico
