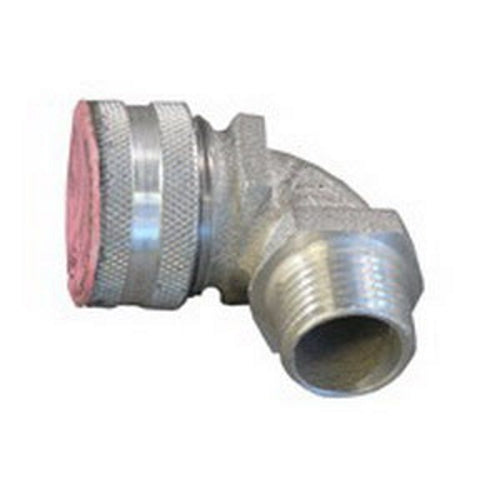

APPLETON Appleton CG90-3775 Angled Strain Relief Cord Connector 3/4 inches 90D
APPLETON Appleton CG90-3775 Angled Strain Relief Cord Connector 3/4 inches 90D

Appleton CG90-3775 Angled Strain Relief Cord Connector 3/4 inches 90D

Brand: APPLETON
SKU: CG90-3775
Availability: In Stock

Ships same day if ordered by 12 pm
$52.41
$52.41
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The APPLETON CG90-3775 is an angled strain relief cord connector. It provides liquidtight termination and strain relief for neoprene, hypalon, and PVC jacketed power and control cables and cords. It is suitable for use in wet or dry locations, sealing electrical connections against dust, dirt, oil, and moisture.

  • Provides a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
  • Copperfree (4/10 of 1% or less) aluminum cap, neoprene sealing grommet, steel or Teflon washer
  • Liquidtight

Product Highlights

The CG90-3775 ensures secure connections and protection in demanding environments. Ideal for various industrial applications requiring reliable cable termination.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: CG90-3775
  • Country of Origin: MX
Technical Specifications
Angle
90 °
Application
For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
ARRA Compliant
N
Buy American Compliant
N
Catalog Number
CG903775
Color
Purple Label
Conductor Range
3/8 - 1/2 IN
Connection
Threaded Hub
Connection Type
Threaded
Country of Origin
MX
Dimensions
1.38 in OD
EU RoHS Indicator
C
Gross Weight Per Pack
0.1500 lb
Gross Weight per Pack Metric
0.07
Gross Weight UOM Metric
kg
Height
0.21 in
Height [Metric]
5.2832 mm
Length
6.60 in
Length [Metric]
16.7640 cm
NEMA Rating
NEMA 3R
Size
3/4 IN in
Standard
Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178
Standards
RoHS CompliantClass I, Div 2, Class II, Div 1, 2, Class IIIUL 514B File No. E14817 ListedCSA C22.2 No. 18.3CSA 065178 Certified
Type
90 DEG Liquidtight Strain Relief Connector
UNSPSC
39121431
UPC 11
78138118965
UPC 12
781381189651
Width
5.30 in
Width [Metric]
13.4620 cm
Brand
Appleton
Manufacturer
Appleton
Cable Openings
3/8 to 1/2 in
Material
Cast Aluminum
Trade Size
3/4 in
MPN
CG90-3775
