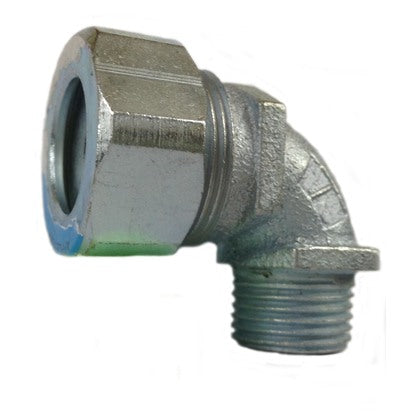

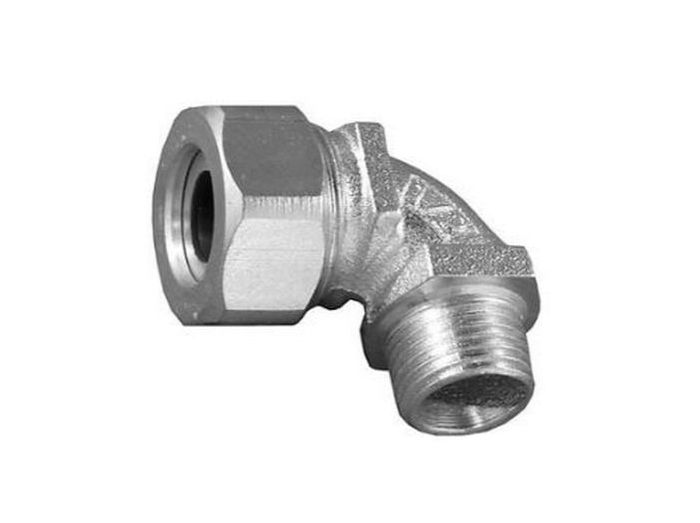

Appleton CG90-2550S 1/2 inches Steel 90D Cord Connector

Product Description

The APPLETON CG90-2550S is a 1/2" steel 90D cord connector. It provides a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for use in wet or dry locations, sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.

• Liquidtight strain relief termination
• For flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
• For use in wet or dry locations

Product Highlights

The Appleton CG90-2550S cord connector ensures secure, liquidtight connections for various cable types in diverse environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG90-2550S
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: CG902550S
• Manufacturer: Appleton
• Product Series: CG
• Family Series: Appleton Cable Entries, CG Series
• Description: 1/2 IN STL L-T CRD&CBL CONN
• Hub Size: 1/2 NPT
• Number of Cables: 1
• Cable Style: Round
• Angle: 90 Degrees
• NEMA Rating: NEMA 3R
• Split Frame: No
• Cable Diameter Range: 0.25-0.38 "
• Type: Bushing Grip with Strain Relief
• Composition: Metallic
• Material: Steel
• Hazardous Location: No
• Approvals: CSA, UL
• Category: Connector/Terminal/Pin
