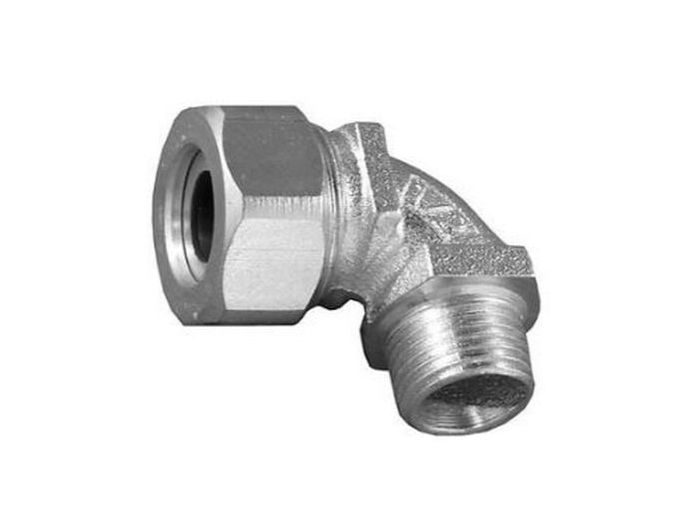

Appleton CG90-137125 1-1/4 inches Aluminum 90D Cord Connector

Brand: APPLETON
SKU: CG90-137125
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$127.11
$127.11
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The APPLETON CG90-137125 is a 1-1/4" aluminum 90D cord connector. It provides a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for use in wet or dry locations, sealing electrical connections against dust and dirt, oil, and water.

  • Type 90 Deg
  • Material Cast Aluminum Body
  • Copper Free Aluminum Cap

Product Highlights

This aluminum 90 degree cord connector is liquidtight and provides strain relief in dry, wet, and hazardous locations.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: CG90-137125

Technical Specifications

  • Material: Aluminum
  • Thread Size: 1-1/4 Inch
  • Cord Size: 1.375 to 1.5 Inch
  • Size: 2.13 Inch Dia
  • Approval: UL 514B, CSA C22.2
  • Application: Liquidtight, Strain Relief, Dry/Wet/Hazardous Location
  • Color: Yellow
  • Enclosure Type: Class I Div 2, Class II Div 1 and 2, Class III
  • Trade Size: 1-1/4
  • Connection Type: Thread
  • Angle: 90
  • UNSPSC: 39121431
  • Product Series: CG
  • Family Series: Appleton Cable Entries, CG Series
  • Description: Cord and Cable Connector, Type 90 Deg, Thread Size 1-1/4 Inch, Material Cast Aluminum Body, Copper Free Aluminum Cap, Neoprene Grommet, Steel/Teflon Washer, Cord Size 1.375 to 1.5 Inch, Size 2.13 Inch Dia, Approval UL 514B, CSA C22.2, Application
  • Hub Size: 1-1/4 NPT
  • Number of Cables: 1
  • Cable Style: Round
  • NEMA Rating: NEMA 3R
  • Split Frame: No
  • Cable Diameter Range: 1.38-1.5 "
  • Type: Bushing Grip with Strain Relief
  • Composition: Metallic
  • Hazardous Location: No
  • Approvals: CSA, UL
  • Cable Diameter: 1.38" to 1.50"
  • Cable System: Flexible Cord
  • Connection Orientation: 90 deg
  • Fitting Type: Connector
  • Hazard Rating: Dust-Ignitionproof / Explosionproof
  • Hazard Rating Specs: Class I, Division 1, Class I, Division 2, Class II, Division 1, Class III
  • Specifications Met: Class III, UL 514B, UL File No. E14817, Class I, Div 2, Class II, Div 1, 2, CSA 065178, CSA C22.2 No. 18.3
  • Thread Standard: NPT
  • Component: Cable Connector
  • Manufacturer: Appleton
