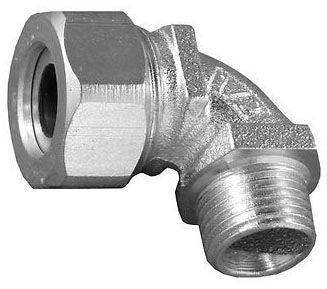

Appleton CG90-1250 Liquidtight Strain Relief Connector 1/2 in 1/8 to 1/4 in Cable Openings CG90-1250

Product Description

The Appleton CG90-1250 is a liquidtight strain relief connector designed for 1/2 inch trade sizes. This connector accommodates cable openings ranging from 1/8 inch to 1/4 inch. Constructed from durable cast aluminum, it provides reliable service in wet or dry locations. The connector is ideal for flexible type neoprene, hypalon, and PVC jacketed power or control cords.

• Thread connection for secure fastening
• Rated for Class I, Division 2 and Class II, Division 1 & 2
• Suitable for NEMA 3R applications

Product Highlights

Use this connector to ensure a liquidtight and strain relief termination, protecting electrical connections against dust, dirt, and moisture.

Product Information

Standard Information

• Brand: Appleton
• MPN: CG90-1250

Technical Specifications

• Trade Size: 1/2 inch
• Angle: 90 degrees
• Cable Openings: 1/8 to 1/4 inch
• Material: Cast Aluminum
• Dimensions: 1-1/4 inch OD
• Connection Type: Thread
• Country of Origin: Mexico
• Compliance Standards: Class I, Division 2, Class II, Division 1, UL 514B, CSA C22.2 No. 18.3
