Appleton CG90-1238 3/8 IN ALUM L-T CRD&CBL CONN

Product Description

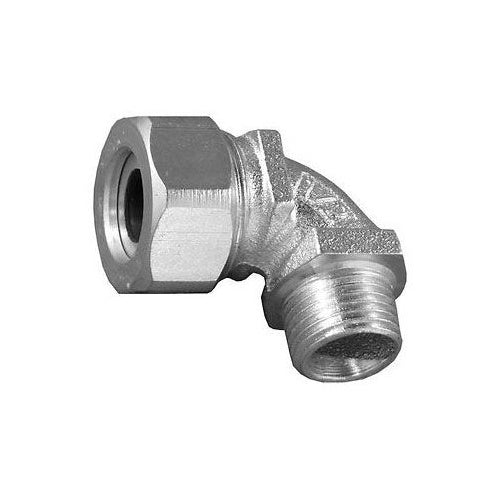

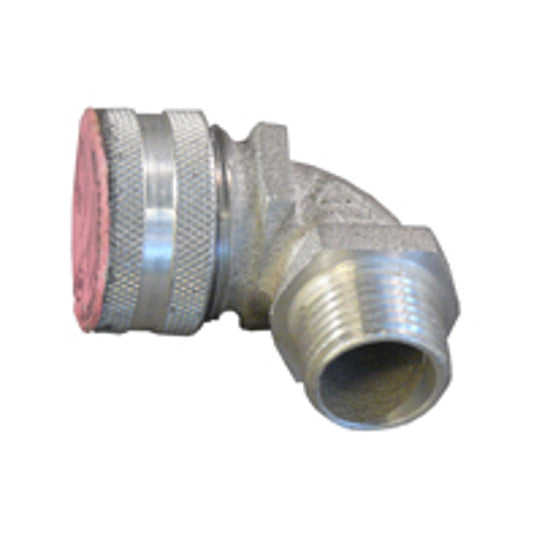

The APPLETON CG90-1238 is a strain relief connector with a 90-degree male type. It provides a liquidtight and strain relief termination for flexible power and control cord cable. The neoprene sealing grommet firmly grips the cable jacket, protecting internal wiring connections against external tension. It is suitable for dry, wet, and hazardous locations.

• Strain Relief Termination for Flexible Power and Control Cord Cable
• Provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
• Neoprene Sealing Grommet Firmly but Safely Grips Cable Jacket to Provide Strain Relief While Protecting Internal Wiring Connections Against External Tension

Product Highlights

This cord and cable connector is ideal for use in wet or dry locations, sealing electrical connections against dust, dirt, oil, and moisture.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG90-1238
• Country of Origin: Mexico

Technical Specifications

• Commodity Level Descrip: Liquid Tight - Flex. Conduit Fittings
• Manufacturer: Emerson Electric Co. (Appleton)
• UPC: 781381189200
• UNSPSC: 39121419
• Commodity Code: Liquid Tight - Flex. Conduit Fittings
• Cord Size: 0.125 to 0.187 Inch
• Thread Size: 3/8 Inch
• Approval: CSA C22.2
• Application: Liquidtight, Strain Relief, Dry/Wet/Hazardous Location
• Size: 0.94 Inch Dia
• Type: 90 Deg Male
• Additional Information: Color Red
• Catalog Number: CG90-1238
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• GTIN: 00781381189200
• Material: Machined Steel
• Trade Size: 3/8
• Connection Type: Thread
• Angle: 90
• Model: CG90
• Full Technical Description: 90 Degree Male Type; Cast Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) Material; 0.94 Inch Diameter Size; CSA C22.2 Approval; Dry/Wet Location, Commercial and Industrial Application; 3/8 Inch Thread Size; 0.125 to 0.187 Inch Cord Size; Label Color Code Red; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard Nec/Cec; CG Model
• Manufacturer Brand: Appleton Electric
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 781381189200
