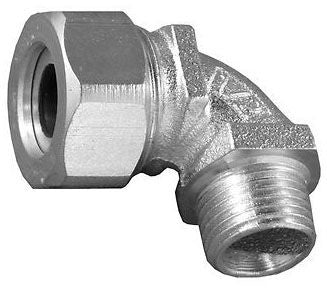

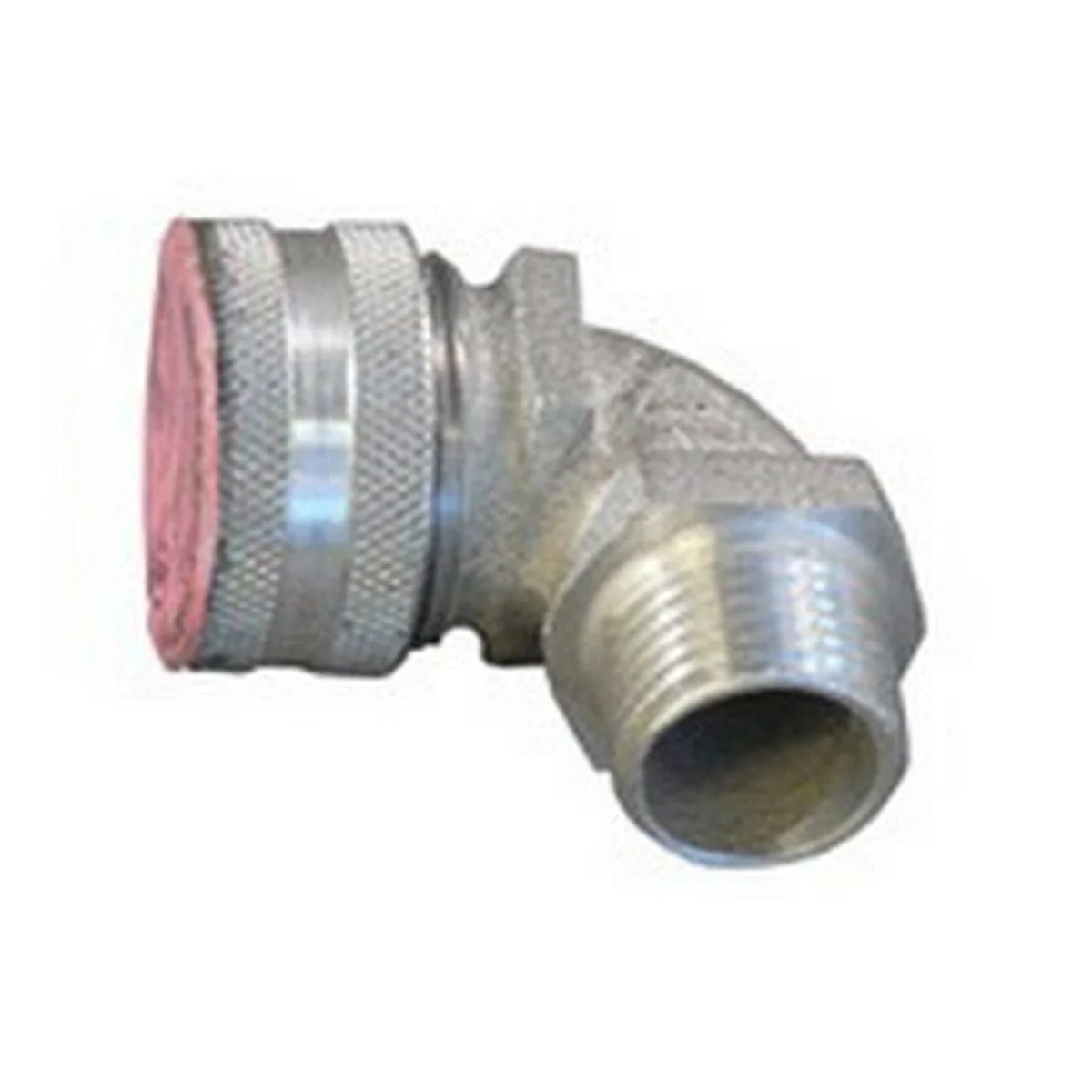

Appleton CG90-100125 1-1/4 Aluminum Liquidtight Cord and Cable Connector

Product Description

The Appleton CG90-100125 is a 1-1/4 inch aluminum liquidtight cord and cable connector. This product is designed for applications where a reliable strain relief connection is required. It supports a conductor range of 1 to 1-1/8 inches and is made of cast aluminum material. The NEMA rating for this connector is 3R, suitable for both wet and dry locations. The connection type is a threaded hub, ensuring a secure fit.

• 90 degree liquidtight strain relief connector
• Compatible with flexible neoprene, hypalon, and PVC jacketed cables
• NEMA 3R rating for environmental protection

Product Highlights

This connector is ideal for creating a robust connection in environments where moisture and dust are concerns. Its design allows for easy installation and durability in harsh conditions.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: CG90-100125
• Size: 1-1/4 inches
• Conductor Range: 1 - 1-1/8 inches
• Material: Cast Aluminum
• NEMA Rating: 3R
• Connection: Threaded Hub
• Standards: Class I, Division 2; Class II, Division 1; UL 514B
