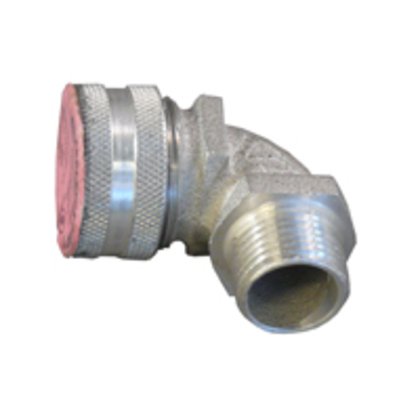

Appleton CG90-100100 1 inches Aluminum 90D Cord Connector

Product Description

The APPLETON CG90-100100 is a 1" aluminum 90D cord connector. It provides a liquidtight and strain relief termination for flexible type neoprene, hypalon and PVC jacketed power or control cord and cable. Ideal for use in wet or dry locations, sealing electrical connections against dust, dirt, oil, and water.

• Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed
• Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
• Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion

Product Highlights

This aluminum cord connector offers liquidtight and strain relief for various cables, suitable for harsh environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG90-100100
• Country of Origin: United States

Technical Specifications

• Material: Aluminum
• MPN: CG90-100100
• Brand: Appleton
• UPC: Does not apply
• Country of Origin: United States
• Component: Cable Connector
• Trade Size: 1
• Application: Used to provide a liquidtight and strain relief termination for flexible type neoprene, hypalon and PVC jacketed power or control cord and cable and for use in wet or dry locations
• Connection Type: Thread
• Angle: 90
