Appleton CG-SR12S Strain Relief CG Conn 3/4 in, 1 in

Product Description

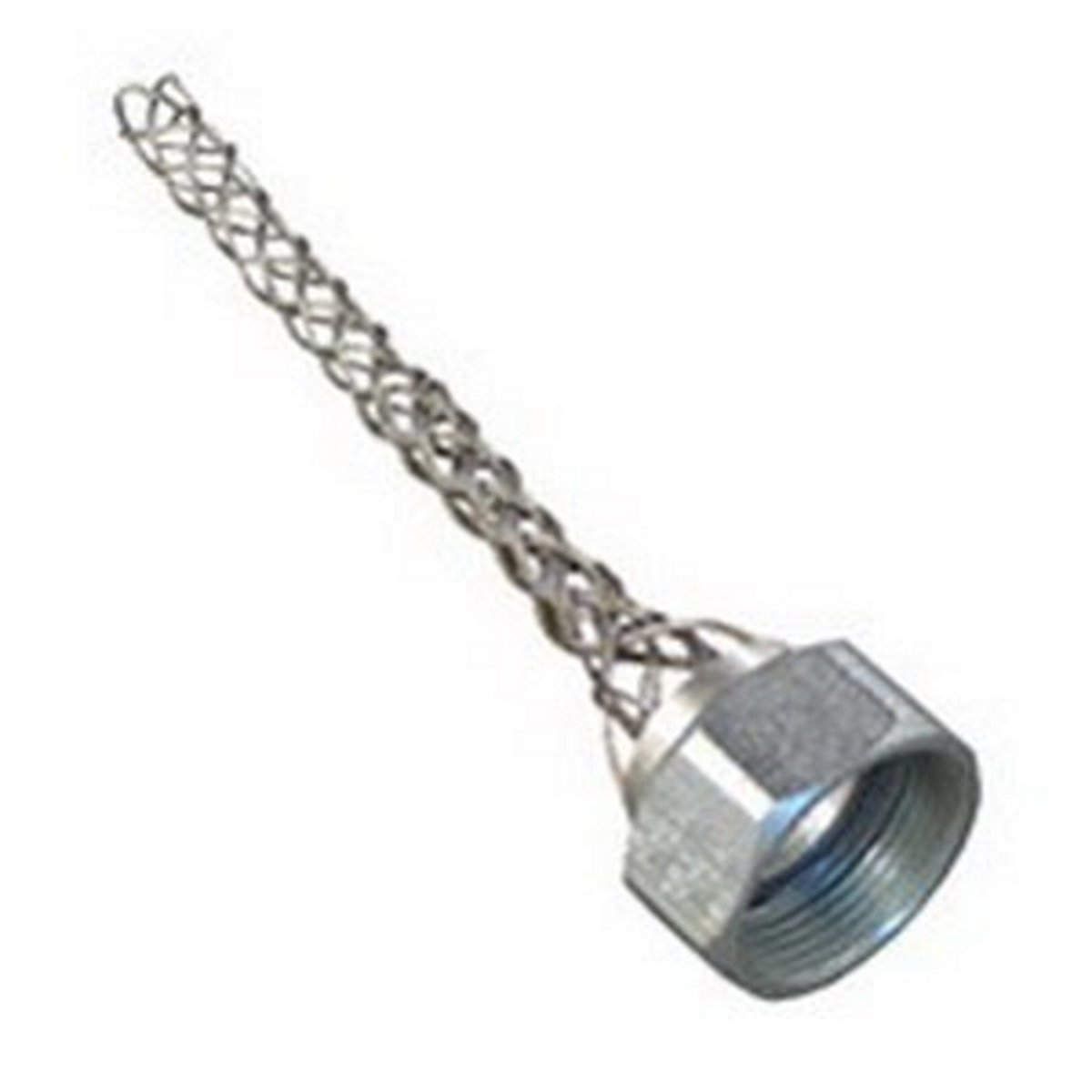

The APPLETON CG-SR12S is a wire mesh strain relief cord grip designed for steel cord connectors. It features a stainless steel wire mesh and steel cap with a zinc-plated finish. This cord grip is suitable for relieving strain at cable terminations and can be used with cord and cable connectors in harsh applications. Dimensions are 8.38 IN Length X 1.38 IN Width.

• Relieves strain at cable termination
• Features stainless steel wire mesh and steel cap
• Suitable for use with cord and cable connectors

Product Highlights

Wire mesh strain relief cord grip with stainless steel construction and zinc-plated cap. Designed for cable termination strain relief.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG-SR12S
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: CG-SR12S
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Application: For Steel Cord Connector
• Finish: Zinc Plated Cap
• Hub Size: 3/4 IN, 1 IN
• Material: Stainless Steel Wire Mesh, Steel Cap
• Special Features: Relieve strain at cable termination; Wire mesh strain reliefs can be used with cord and cable connectors for particularly harsh applications
• Standard: UL 514B, UL File Number E14817, CSA Number C22.2 18.3, CSA 065178, Class I, Division 2, Class II, Division 1 And 2, Class III
• Item Type: Wire Mesh Strain Relief Cord Grip
• Cord Size: 0.625 to 0.75 Inch
• Size: 1.38 Inch Dia x 8.38 Inch L
• Family Series: Appleton Grips
• Description: Wire Mesh Strain Relief Cord Grip, Hub Size: 3/4 IN, 1 IN, Material: Stainless Steel Wire Mesh, Steel Cap, Finish: Zinc Plated Cap, Dimensions: 8.38 IN Length X 1.38 IN Width, Enclosure: NEMA 3R, Connection: Female Threaded X Mesh, Stand
• Mounting: Stainless Steel Mesh
• Approvals: CSA, UL
• Diameter Range: 0.625 - 0.750 in
