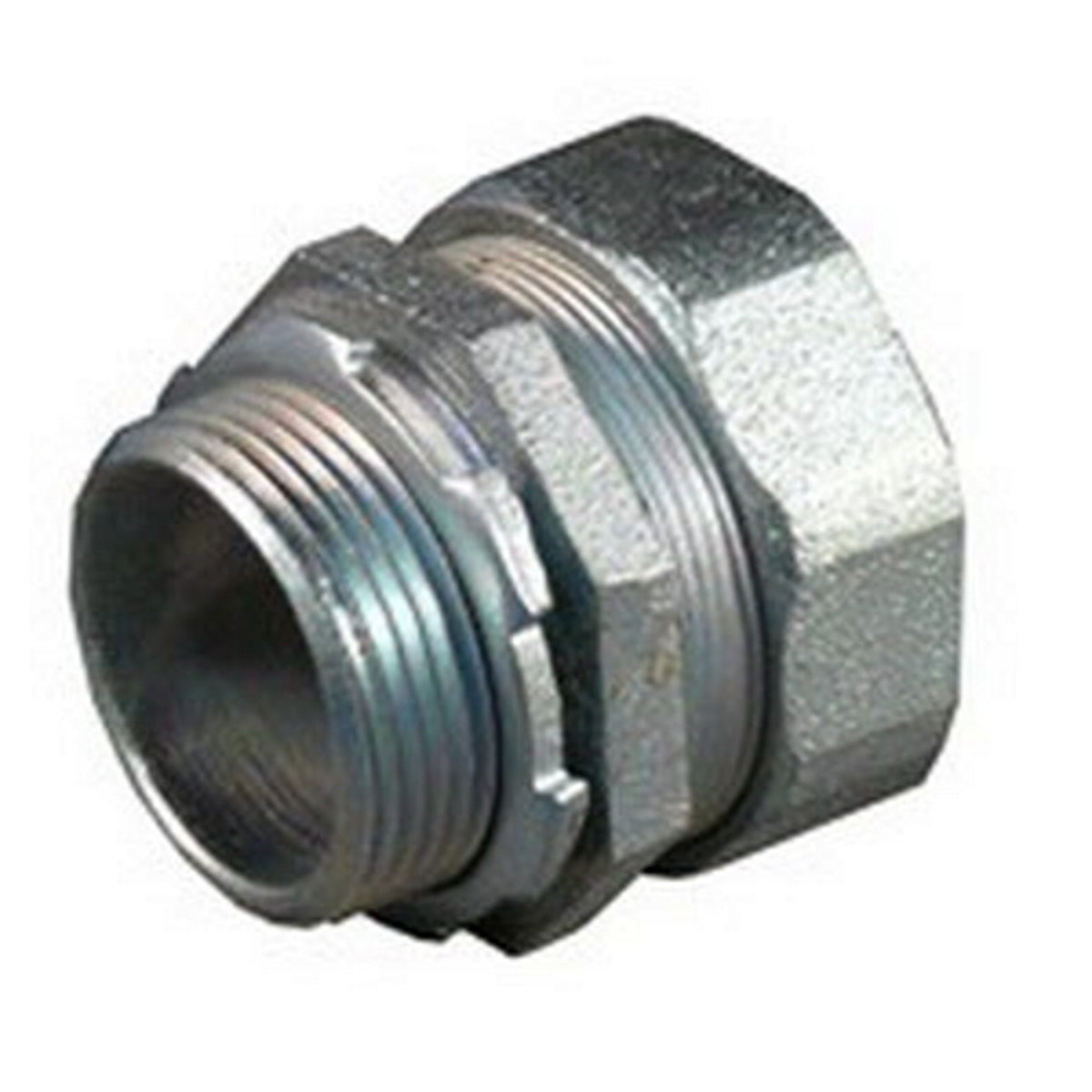

Appleton CG-87125S 1-1/4 Steel Straight Cord Connector

Product Description

The Appleton CG-87125S is a straight liquidtight strain relief connector designed for flexible power or control cords. This connector accommodates conductor sizes ranging from seven eighths inch to one inch and features a threaded hub connection. Constructed from machined steel, it is suited for various applications in both wet and dry locations.

• Catalog Number: CG-87125S
• Conductor Range: 7/8 - 1 inches
• NEMA Rating: 3R

Product Highlights

Designed for sealing electrical connections against dust and moisture, the CG-87125S provides a strong and reliable grip for cable jackets, protecting internal wiring from external tension.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Made in USA: No

Technical Specifications

• Item Type: Straight Liquidtight Strain Relief Connector
• Size: 1-1/4 inches
• Material: Machined Steel
• Application: For Flexible Type Neoprene, Hypalon And PVC Jacketed Cord
• Connection: Threaded Hub
• Dimensions: 1-3/4 inches height
• Special Features: Suitable for wet or dry environments, protects against moisture, and features a neoprene sealing grommet
• Catalog Description: STRAIGHT LIQUIDTIGHT STRAIN RELIEF CONNECTOR, SIZE: 1-1/4 IN, CONDUCTOR RANGE: 7/8 - 1 IN, NEMA RATING: NEMA 3R
