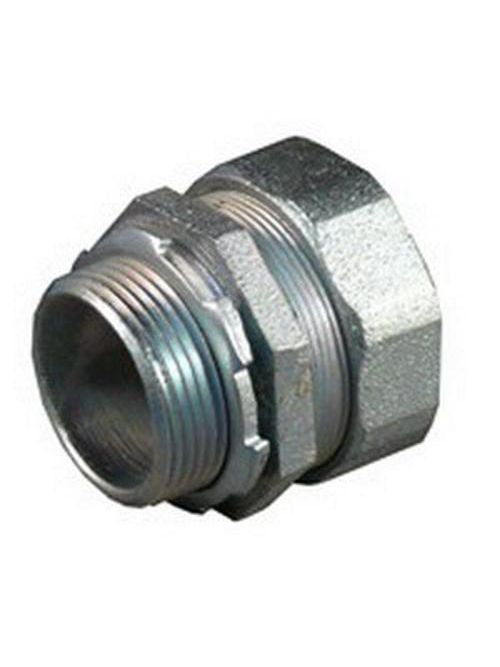

Appleton CG-7575S 3/4 Steel Liquidtight Cord and Cable Connector

Product Description

The Appleton CG-7575S is a 3/4 inch steel liquidtight cord and cable connector designed to provide a strong, reliable connection. It features a threaded hub that ensures secure attachment to electrical conduits and prevents moisture and dust intrusion. This component is suitable for flexible type neoprene, hypalon, and PVC jacketed power or control cords.

• Machined steel construction for durability
• NEMA 3R rating for wet and dry locations
• Conductor range of three-fourths to seven-eighths inches

Product Highlights

This connector is ideal for commercial and industrial applications where sealing electrical connections against environmental factors is necessary. Its neoprene sealing grommet provides strain relief and helps prevent damage to internal wiring.

Product Information

Standard Information

• Brand: Appleton Electric
• Catalog Number: CG-7575S

Technical Specifications

• Material: Machined Steel
• Connection: Threaded Hub
• NEMA Rating: 3R
• Conductor Range: 3/4 - 7/8 inches
• Dimensions: 1.38 inches height
• Application: For flexible type neoprene, hypalon, and PVC jacketed power or control cord
• Standards: Class I, Division 2, Class II, Division 1 and 2, Class III, UL 514B, CSA C22.2 No. 18.3
