Appleton CG-75125S Connector 1-1/4 IN

Product Description

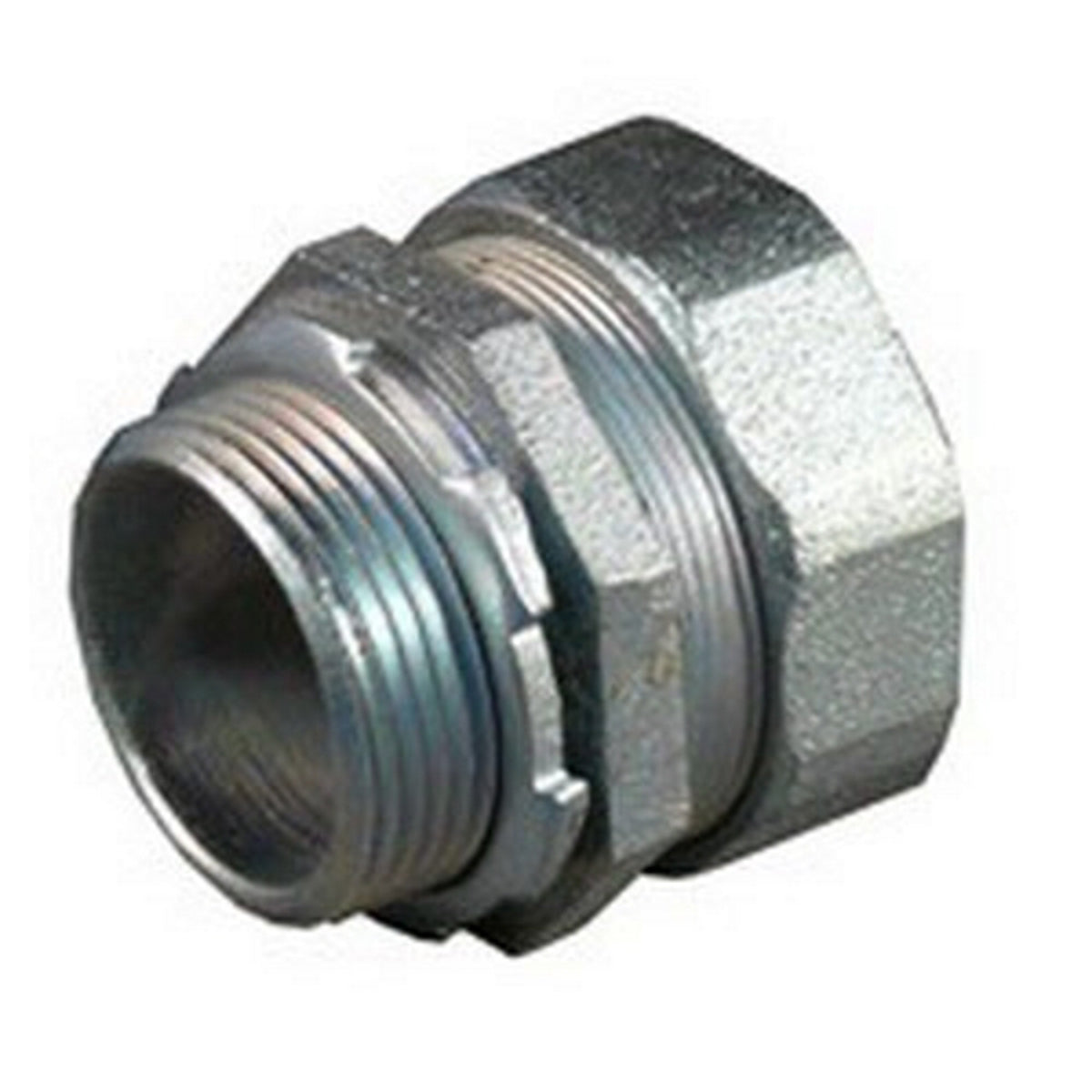

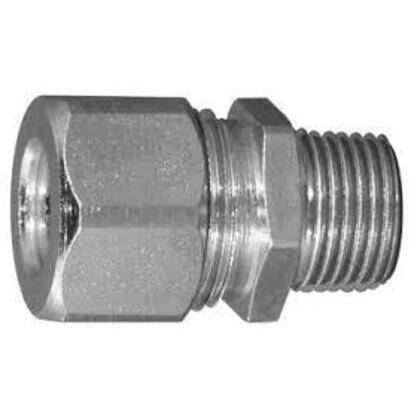

The APPLETON CG-75125S is a straight liquidtight strain relief connector. It is size 1-1/4 IN and accommodates a conductor range of 3/4 - 7/8 IN. This connector is suitable for flexible type neoprene, hypalon and PVC jacketed power or control cord and cable, and is designed for use in wet or dry locations.

• Seals electrical connections against dust and dirt, oil, water or other atmosphere containing moisture
• Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range
• Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief

Product Highlights

The connector features a machined steel cap and a neoprene sealing grommet. It meets NEMA 3R standards and is UL and CSA certified.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG-75125S
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: CG-75125S
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Application: For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
• Color: Gray Label
• Conductor Range: 3/4 - 7/8 IN
• Connection: Threaded Hub
• Material: Machined Steel
• NEMA Rating: 3R
• Special Features: For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Machined steel cap; Neoprene sealing grommet
• Standard: Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178
• UPC: 781381449472
• GTIN: 00781381449472
• Item Type: Straight Liquidtight Strain Relief Connector
• Size: 1-1/4
• Finish: Natural
• Type: Strain Relief
• Manufacturer Name: Emerson Electric
• UNSPSC: 39121431
• Diameter: 1 1/4 in
• Diameter Range: 0.750 - 0.875 in
