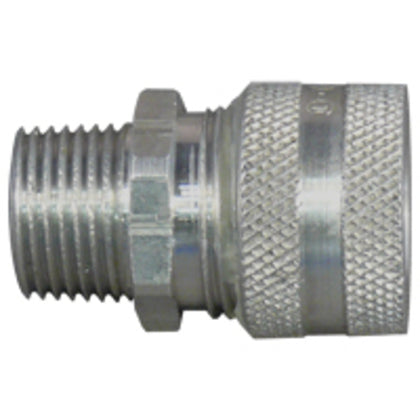

Appleton CG-75125 1-1/4 inches Aluminum Straight Cord Connector

Product Description

The APPLETON CG-75125 is a 1-1/4" aluminum straight cord connector. This liquidtight strain relief cord and cable connector is suitable for use in non-hazardous areas. It provides a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for wet or dry locations.

• Color coded identification label clearly states the catalog number and minimum/maximum cable diameter range for which the connector is designed
• Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
• Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion

Product Highlights

The APPLETON straight cord connector seals electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG-75125

Technical Specifications

• Material: Aluminum
• Trade Size: 1-1/4
• Application: For flexible type neoprene, hypalon and PVC jacketed power or control cord and cable
• Connection Type: Threaded Hub
• Type: Strain Relief
• Series: CG Series
• Diameter Range: 0.750 - 0.875 in
