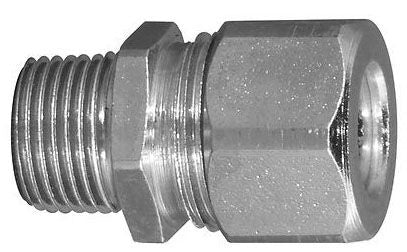

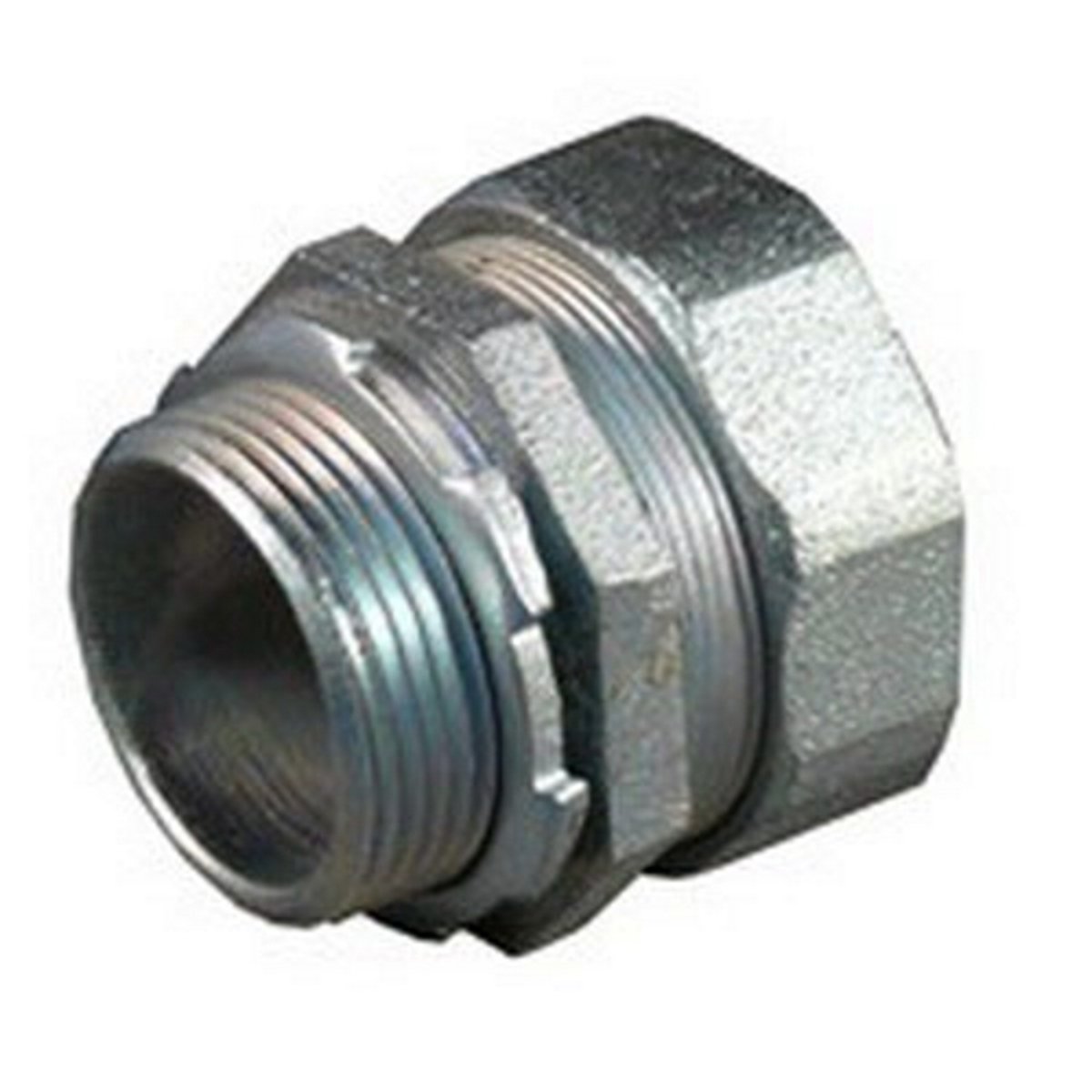

Appleton CG-75100S CG Series Strain Relief Straight Cord Connector 1 in 3/4 to 7/8 in

Product Description

The Appleton CG-75100S is a straight strain relief connector designed for secure termination of cable and cord. This connector accommodates cables with diameters between three-fourths inch to seven-eighths inch. It features a machined steel construction that ensures durability and effective strain relief. Compatible with neoprene, hypalon, and PVC jacketed cords, it is suitable for use in both wet and dry environments.

• Size: 1 inch trade size
• Cable openings: three-fourths inch to seven-eighths inch
• Threaded hub connection type for secure installation

Product Highlights

This connector provides effective sealing against dust, dirt, and moisture elements.

Product Information

Standard Information

• Material: Machined steel
• Country of Origin: Mexico

Technical Specifications

• Type: Straight strain relief connector
• Color Label: Gray
• Dimensions: 1-3/4 inches wide
• NEMA Rating: 3R
• Application: Suitable for flexible type neoprene, hypalon, and PVC jacketed power or control cords
• Standards: UL Listed, CSA C22.2
• Conductor Range: Three-fourths inch to seven-eighths inch
• Connection: Threaded hub
