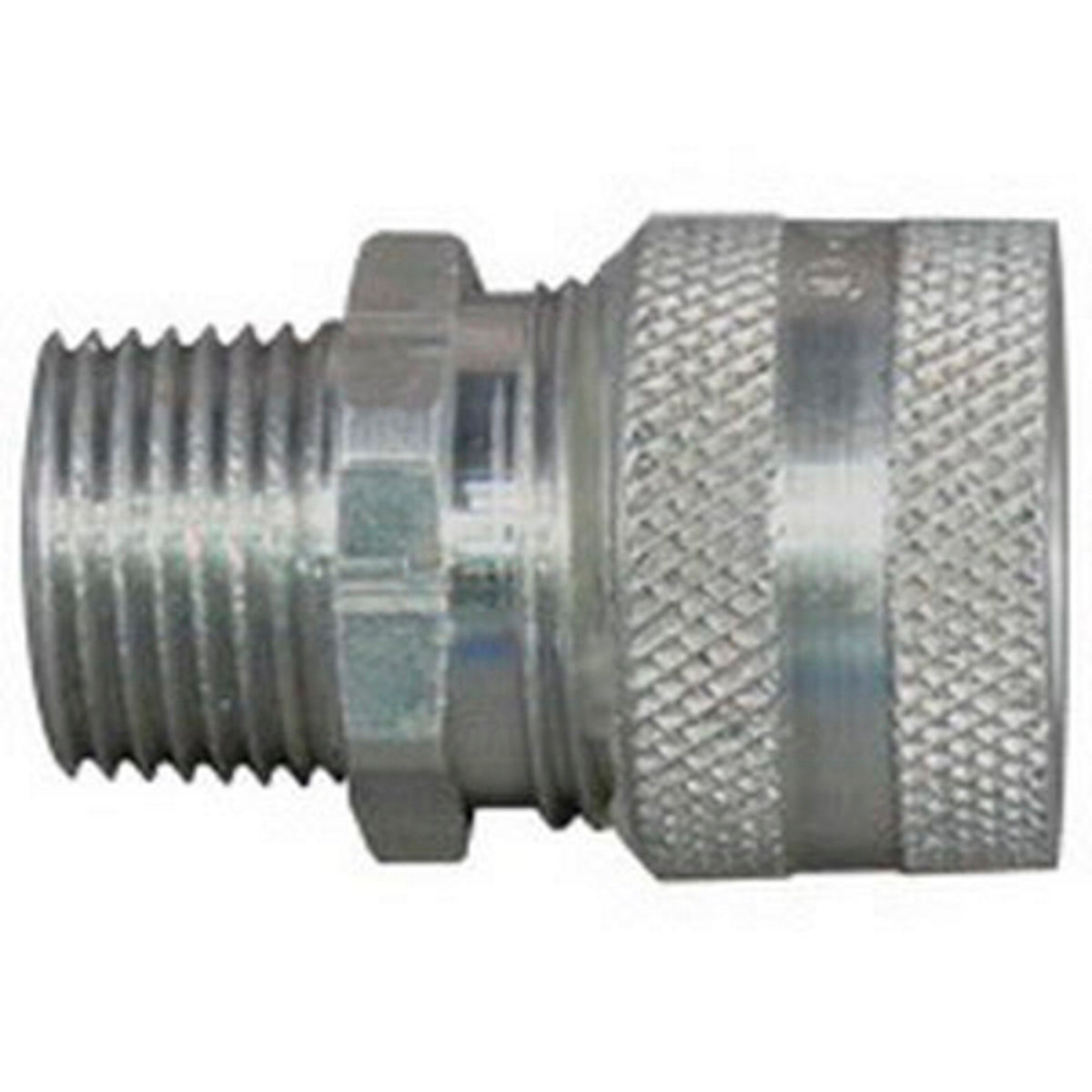

Appleton CG-75100 Aluminum Straight Liquidtight Strain Relief Cord / Cable Connector; 1 In

Product Description

The Appleton CG-75100 is an aluminum straight liquidtight strain relief cord and cable connector designed for electrical applications. This connector operates with a size of one inch. It is suitable for use with flexible power or control cords and cables that have neoprene, hypalon, or PVC jackets.

• Conductor range: three fourths to seven eighths inches
• Material: aluminum
• NEMA rating: NEMA 3R

Product Highlights

Designed for both wet and dry locations, sealing electrical connections against dust, dirt, oil, and moisture, the Appleton CG-75100 enhances reliability and safety in commercial and industrial applications.

Product Information

Standard Information

• Catalog Number: CG-75100
• Manufacturer: Appleton Electric

Technical Specifications

• Material: Aluminum
• Connection: Threaded Hub
• Conductor Range: three fourths - seven eighths inches
• Dimensions: one and three quarters inches height
• Application: For flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
• Special Features: Copper-free aluminum cap; neoprene sealing grommet provides strain relief while protecting internal wiring connections
• UPC: 781381191807
• NEMA Rating: 3R
