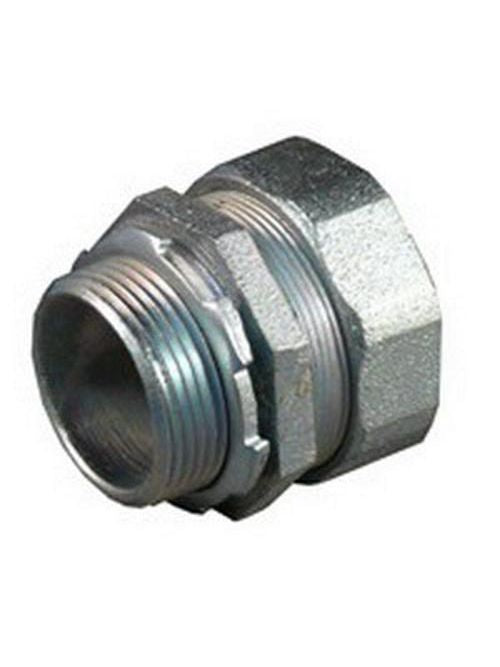

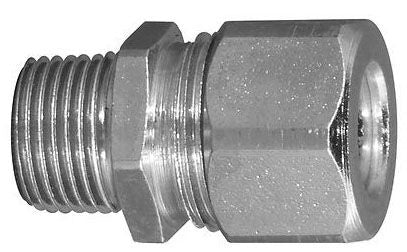

Appleton CG-6250S 1/2 Steel Liquidtight Cord and Cable Connector

Product Description

The Appleton CG-6250S is a straight liquidtight strain relief connector designed for 1/2 inch cables. This connector features a conductor range of five-eighths to three-quarters of an inch and is constructed from machined steel. It includes an orange label for identification and has a NEMA 3R rating suitable for both wet and dry locations. The threaded hub connection ensures a secure fit.

• Size: 1/2 inch
• Material: Machined steel
• NEMA Rating: 3R

Product Highlights

This connector is ideal for flexible type neoprene, hypalon, and PVC jacketed power or control cords. It provides strain relief while protecting internal wiring connections against external tension.

Product Information

Standard Information

• Catalog Number: CG-6250S
• Manufacturer: Appleton Electric

Technical Specifications

• Material: Machined steel
• Conductor Range: 5/8 - 3/4 inch
• Connection: Threaded hub
• Dimensions: 1.25 inches height
• Approval: UL, CSA
• Application: For flexible types with PVC and neoprene jackets
• NEMA Rating: 3R
