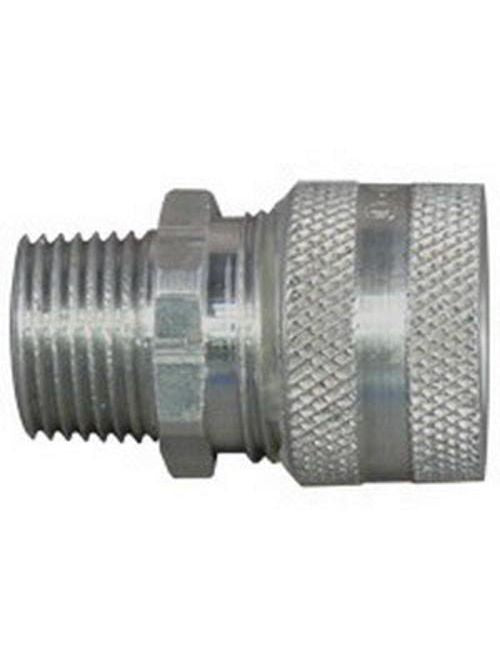

Appleton CG-6250 1/2 Aluminum Liquidtight Cord and Cable Connector

Product Description

The Appleton Group CG-6250 is a straight liquidtight strain relief connector. This connector is suitable for a conductor range of five-eighths inch to three-quarters inch and is made from aluminum. It features a threaded hub for connection and holds a NEMA rating of threeR.

• Material: Aluminum
• Connection Type: Threaded Hub
• NEMA Rating: NEMA 3R

Product Highlights

This connector is designed for use in both wet and dry locations. It provides strain relief for electrical connections against moisture, dust, and dirt. The packaging includes a color-coded identification label for easy installation.

Product Information

Standard Information

• Catalog Number: CG-6250
• Manufacturer: Appleton Electric

Technical Specifications

• Size: 1/2 Inch
• Material: Aluminum
• Conductor Range: 5/8 - 3/4 IN
• Connection: Threaded Hub
• NEMA Rating: 3R
• Height: 1-1/4 Inches
• Standards: Class I, Division 2
• Application: For flexible type neoprene, Hypalon, and PVC jacketed power or control cord and cable
