Appleton CG-62100 Connector Cord Str 1 In 5/8 to 3/4 In Aluminum

Product Description

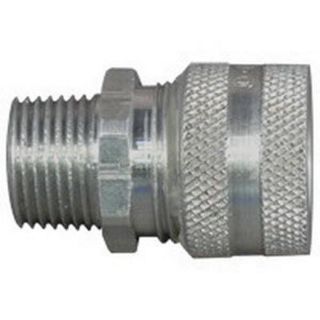

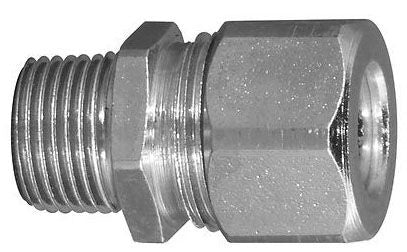

Appleton CG-62100 is a strain relief straight cord connector designed for use in various applications where secure and reliable electrical connections are essential. Constructed from aluminum, this connector is suitable for liquidtight connections in both wet and dry locations.

• Suitable for cable openings from five-eighths inch to three-fourths inch
• Provides strain relief while protecting electrical connections from external tension
• Seals against moisture, dust, and dirt

Product Highlights

This connector is ideal for flexible type neoprene, hypalon, and PVC jacketed cord applications.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer Part No: CG-62100

Technical Specifications

• Dimensions: 1.38 inch diameter
• Connection Type: Threaded Hub
• Material: Aluminum
• Color: Orange Label
• Conductor Range: 5/8 to 3/4 inch
• NEMA Rating: 3R
• Standards: UL 514B, CSA C22.2
• Country of Origin: Mexico
