Appleton CG-5075S 3/4 Steel Liquidtight Cord and Cable Connector

Product Description

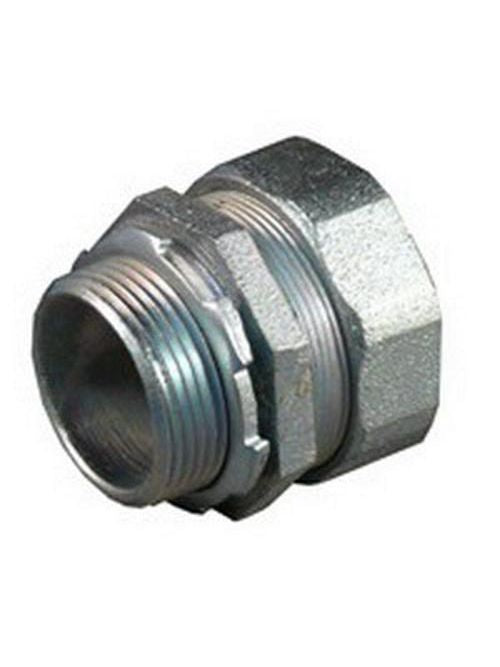

The Appleton CG-5075S is a 3/4 inch steel liquidtight cord and cable connector designed to provide a secure connection for power or control cords. Made from machined steel, this connector ensures durability and functionality in various applications. The CG-5075S enables the connection of cables with a conductor range from half an inch to five-eighths of an inch in diameter.

• Type: Straight Liquidtight Strain Relief Connector
• Material: Steel with Neoprene sealing grommet
• NEMA Rating: 3R for wet and dry locations

Product Highlights

This connector is ideal for use in commercial and industrial settings. It helps seal electrical connections and protects against moisture, dust, and other environmental contaminants.

Product Information

Standard Information

• Brand: Appleton
• MPN: CG-5075S

Technical Specifications

• Size: 3/4 inch
• Conductor Range: 1/2 - 5/8 inch
• Material: Machined Steel
• Connection: Threaded Hub
• Height: 1-1/4 inches
• Standards: UL 514B, CSA C22.2 No. 18.3
• Applications: Suitable for flexible type neoprene, Hypalon, and PVC jacketed cords
• Country of Origin: Mexico
