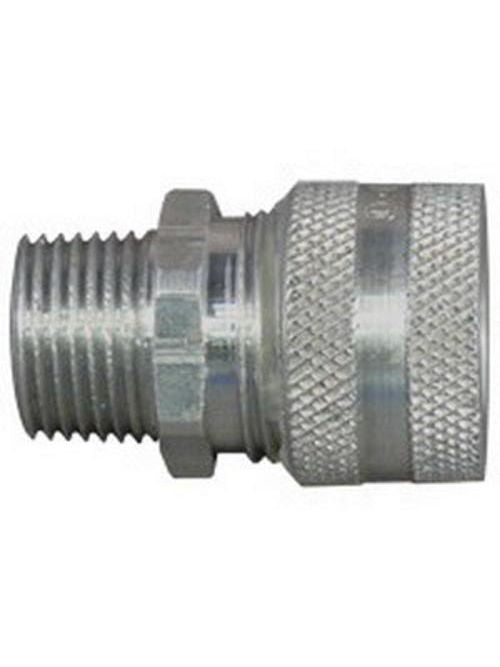

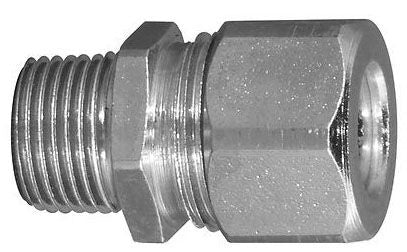

Appleton CG-5075 3/4 Aluminum Liquidtight Cord and Cable Connector

Product Description

The Appleton CG-5075 is a 3/4 inch aluminum straight liquidtight strain relief connector. This connector is designed for use with flexible type neoprene, hypalon, and PVC jacketed power or control cords and cables. The connector features a threaded hub for secure attachment and a NEMA 3R rating for versatility in various environments.

• Conductor Range: 1/2 to 5/8 inches
• Height: 1-1/4 inches
• Application: Suitable for wet or dry locations

Product Highlights

The CG-5075 connector provides reliable strain relief and protection for electrical connections against dust, dirt, and moisture. This aluminum connector is lightweight yet durable, making it ideal for both commercial and industrial applications.

Product Information

Standard Information

• Brand: Appleton
• MPN: CG-5075

Technical Specifications

• Material: Aluminum
• NEMA Rating: 3R
• Connection Type: Threaded Hub
• Approval Standards: UL 514B, CSA C22.2
• Used On: Wet/Dry locations
• Special Features: Neoprene sealing grommet, copper-free aluminum cap
