Product Description

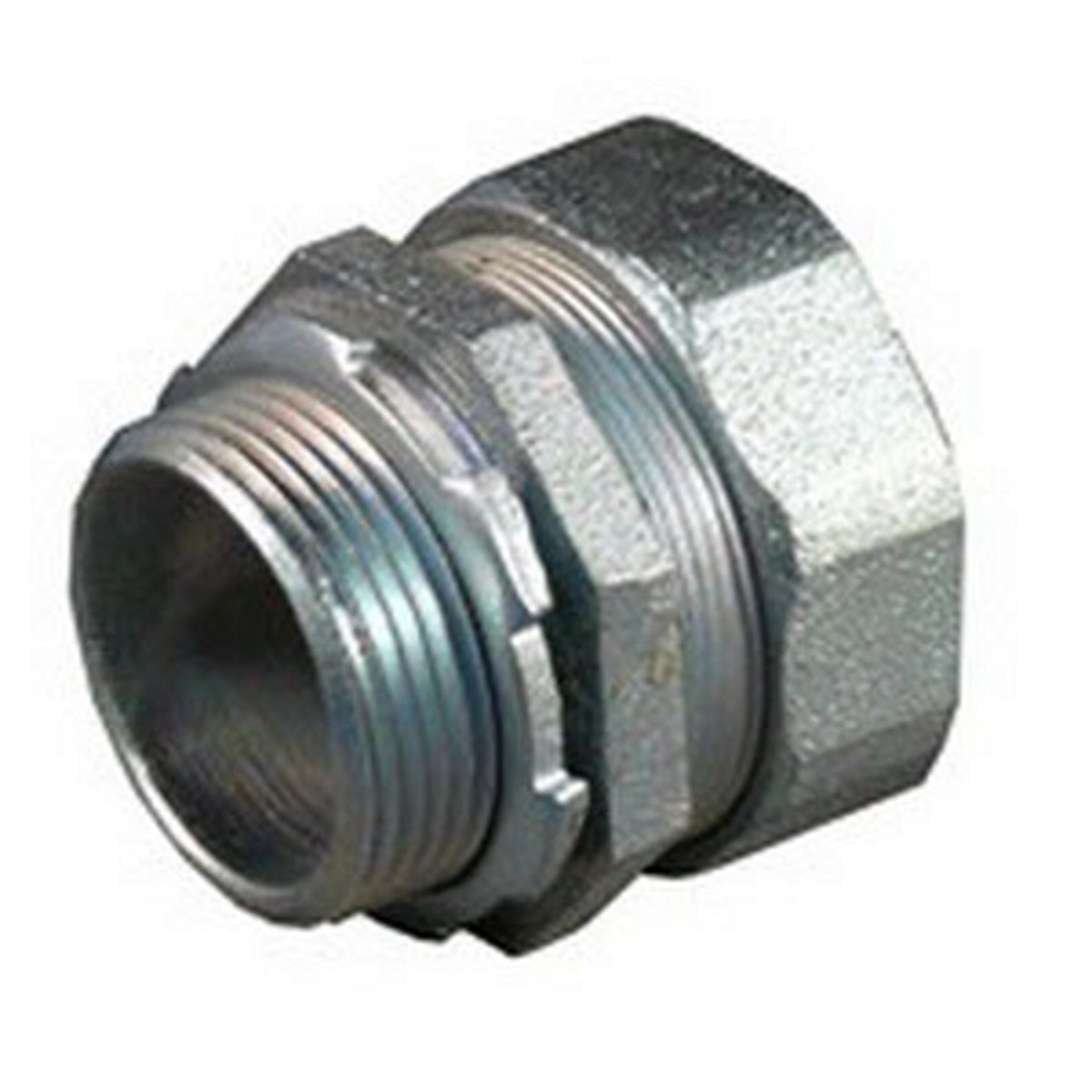

The Appleton CG-5050S is a straight liquidtight strain relief connector designed for flexible power or control cords. The product features a conductor range of one half to five eighths inches and is constructed from machined steel. This connector provides strong sealing against moisture and contaminants, making it suitable for wet or dry applications.
- Conductor range of one half to five eighths inches
- Constructed from durable machined steel
- Suitable for wet or dry location use
Product Highlights
This connector is designed for applications that require robust strain relief. It prevents dust, dirt, and moisture from entering electrical connections, ensuring reliability in challenging environments.
Product Information
Standard Information
-
Brand: Appleton
-
MPN: CG-5050S
Technical Specifications
-
Catalog Number: CG-5050S
-
Manufacturer: Appleton Electric
-
Country of Origin: Mexico
-
Conductor Range: 0.5 to 0.625 inch
-
Connection: Threaded Hub
-
Material: Machined Steel
-
NEMA Rating: 3R
-
Application: Suitable for flexible type neoprene, hypalon, and PVC jacketed cords and cables
-
Dimensions: One and one quarter inches height
-
Special Features: Color-coded label; neoprene sealing grommet for strain relief; steel washer to reduce friction
