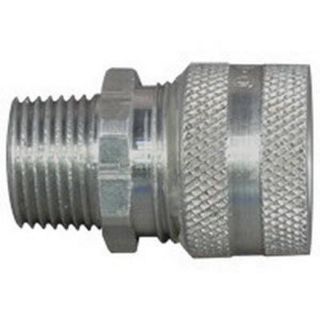

Appleton CG-5050 Connector Cord Str 1/2In 1/2 To 5/8 In

Product Description

Appleton CG-5050 is a liquidtight strain relief connector designed for use with power or control cords. It has cable openings of one half inch to five eighths inch and is made from aluminum. This connector ensures a secure fit and reliable performance in various applications.

• Compatible with flexible type neoprene, hypalon, and PVC jacketed cables.
• Ideal for both wet and dry locations, providing protection against dust and moisture.
• Features a neoprene sealing grommet that supports strain relief while maintaining wire integrity.

Product Highlights

This connector is suitable for commercial and industrial use. It is UL listed and certified for Class I, Division 2, and Class II applications.

Product Information

Standard Information

• Manufacturer: Appleton
• MPN: CG-5050

Technical Specifications

• Type: Strain Relief
• Material: Aluminum
• Color: Pink Label
• Dimensions: 1-1/4 inches diameter
• Connection Type: Threaded Hub
• Cable Openings: 1/2 to 5/8 inches
• NEMA Rating: 3R
