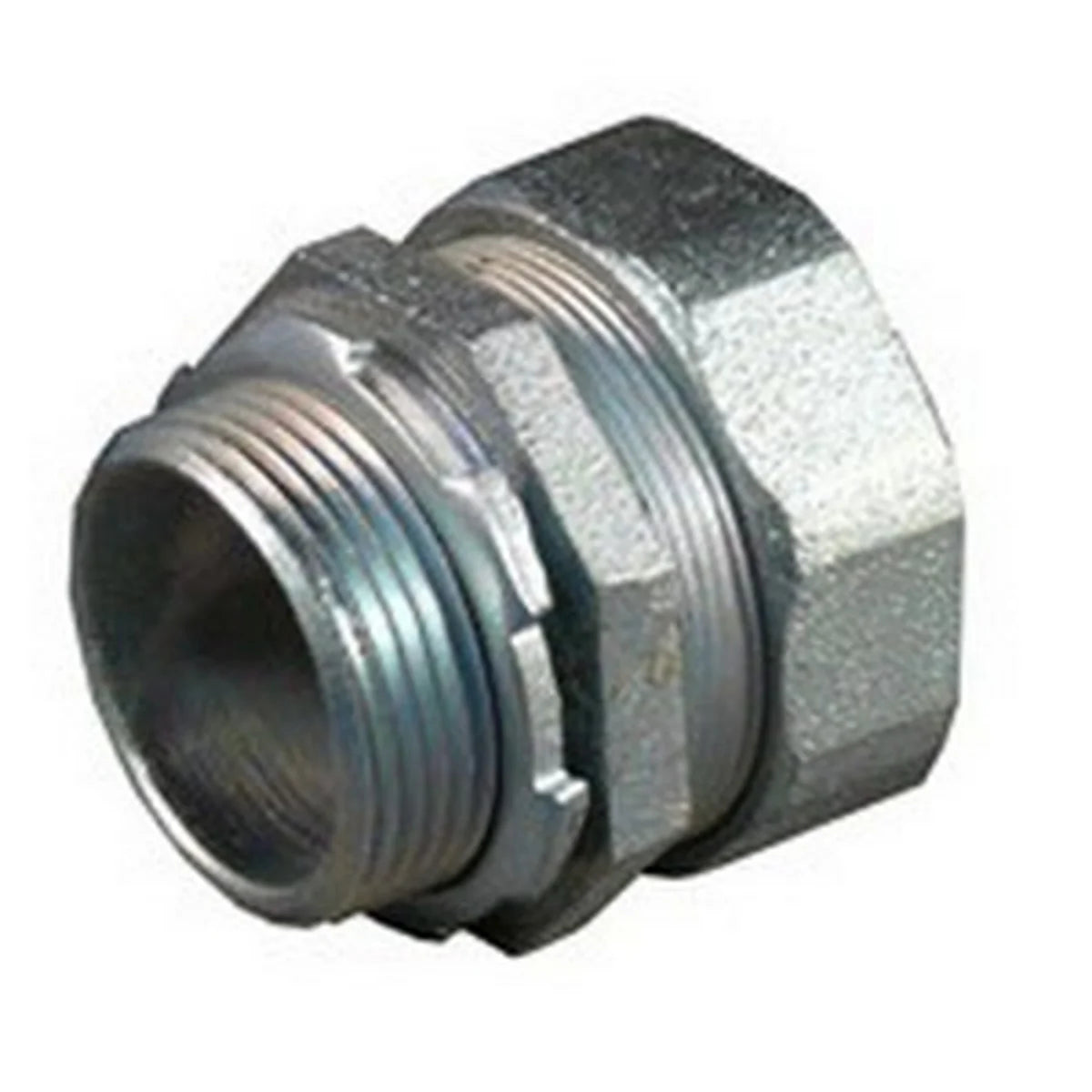

Appleton CG-50100S 1 Inch Steel Liquidtight Cord and Cable Connector

Product Description

The Appleton brand CG-50100S is a straight liquidtight strain relief connector designed for various electrical applications. This connector is suitable for cables with a conductor range of one-half inch to five-eighths inch. It is built from machined steel to ensure durability and is compliant with NEMA 3R ratings. The design features a threaded hub for easy connection, making it ideal for environments that require robust strain relief and moisture protection.

• Machined Steel construction for strength
• Threaded hub connection type
• Compatible with flexible type neoprene, Hypalon, and PVC jacketed cords

Product Highlights

This connector is designed for use in both wet and dry locations, providing reliable sealing against dust and moisture while maintaining strong electrical connections.

Product Information

Standard Information

• Catalog Number: CG-50100S
• Manufacturer: Appleton Electric

Technical Specifications

• Color: Pink Label
• Material: Machined Steel
• NEMA Rating: 3R
• Conductor Range: 1/2 to 5/8 inch
• Dimensions: 1.38 inch height
• Connection Type: Threaded Hub
• Application: For flexible type neoprene, Hypalon, and PVC jacketed power or control cord and cable
• Standards: Class I, Division 2, Class II, Division 1 and 2, Class III, UL 514B
• UPC: 781381449434
