Appleton CG-3750S Straight Liquidtight Strain Relief Cord & Cable Connector, 1/2 inch

Product Description

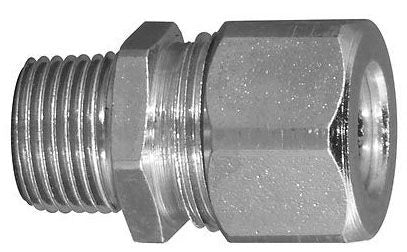

The Appleton CG-3750S is a straight liquidtight strain relief cord and cable connector with a trade size of one half inch. This connector works with cables ranging from three-eighths inch to one-half inch in diameter. It is made from machined steel and equipped with a neoprene sealing grommet for effective strain relief.

• Size: 1/2 inch
• Conductor Range: 3/8 - 1/2 inch
• Material: Machined Steel

Product Highlights

This connector is ideal for wet and dry location installations. It is designed to seal electrical connections against moisture, oil, dust, and dirt.

Product Information

Standard Information

• Catalog Number: CG-3750S
• Manufacturer: Appleton Electric

Technical Specifications

• Trade Size: 1/2 inch
• Connection Type: Threaded Hub
• NEMA Rating: 3R
• Application: For Flexible Type Neoprene, Hypalon and PVC Jacketed Power or Control Cord and Cable
• Country of Origin: Mexico
• Material: Machined Steel
• Dimensions: 1-1/4 inch height
• Approval: UL, CSA
