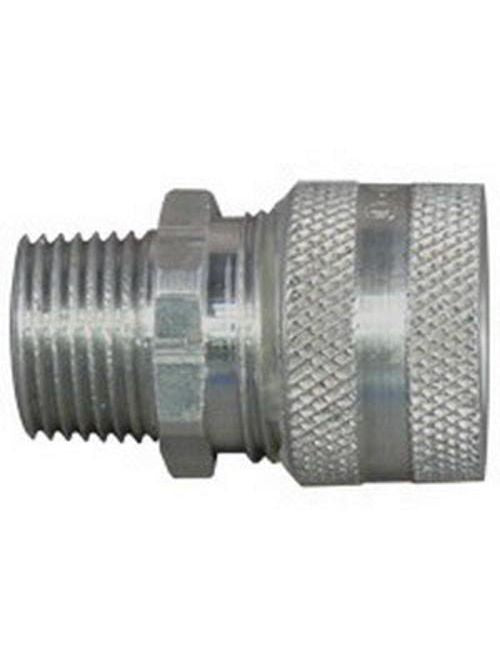

Appleton CG-3750 1/2 Aluminum Liquidtight Cord and Cable Connector

Product Description

The Appleton CG-3750 is a 1/2 inch aluminum liquidtight cord connector designed for securing flexible type neoprene, Hypalon, and PVC jacketed power or control cords. This connector features a range allowing for cable openings from three-eighths inch to one-half inch.

• Constructed from aluminum for durability.
• Ideal for use in wet and dry locations.
• NEMA Rating of 3R ensures protection against harsh environmental conditions.

Product Highlights

The Appleton CG-3750 connector provides reliable strain relief while protecting internal wiring connections from external tension on the cable or cord, making it suitable for both commercial and industrial applications.

Product Information

Standard Information

• Brand: Appleton
• MPN: CG-3750

Technical Specifications

• Catalog Number: CG-3750
• Material: Aluminum
• Diameter: 1.25 inches
• Conductor Range: 3/8 - 1/2 inches
• NEMA Rating: 3R
• Connection Type: Threaded Hub
• Country of Origin: Mexico
• Standards: UL 514B, CSA C22.2 No. 18.3
• Applications: Suitable for flexible type neoprene, Hypalon, and PVC jacketed cords
