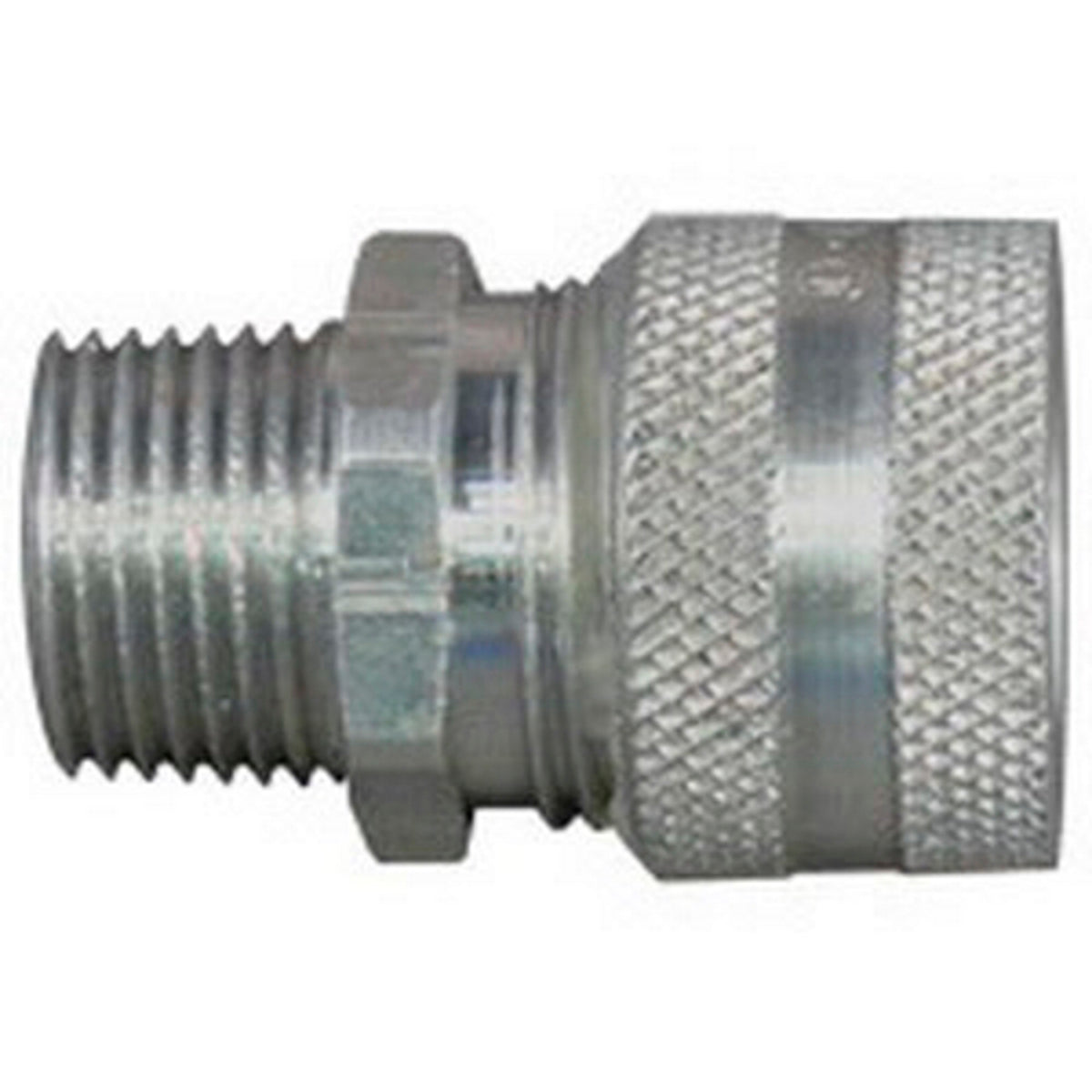

Appleton CG-3150 Straight Liquidtight Strain Relief Cord & Cable Connector 1/2 inch 0.312 - 0.437 inch

Product Description

The Appleton CG-3150 is a Straight Liquidtight Strain Relief Cord and Cable Connector. It has a size of 1/2 inch and accommodates conductors ranging from 5/16 inch to 7/16 inch. Made from aluminum, this connector is designed for NEMA 3R applications, offering reliable performance in various environments.

• Connector size: 1/2 inch
• Compatible conductor range: 5/16 inch - 7/16 inch
• Rated for use in wet or dry locations

Product Highlights

This connector features a threaded hub design for secure connections. Its neoprene sealing grommet provides strain relief and protects internal wiring against external tension. The color-coded identification label clearly states the catalog number and specifications for easy identification.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: CG-3150
• Material: Aluminum
• NEMA Rating: 3R
• Connection: Threaded Hub
• Dimensions: 0.94 inch Height
• Application: For flexible type neoprene, hypalon, and PVC jacketed power or control cords and cables
• Standards: Class I, Division 2; Class II, Division 1 and 2; Class III; UL 514B; E14817; CSA C22.2 No. 18.3; 065178
