Appleton CG-3138S 3/8 Steel Straight Cord Connector

Product Description

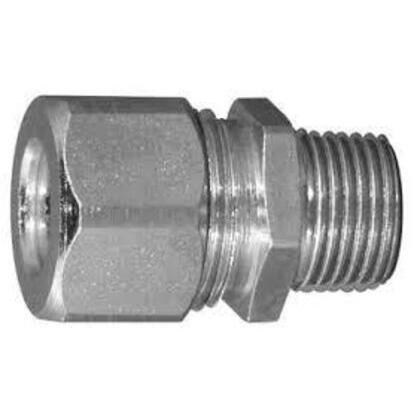

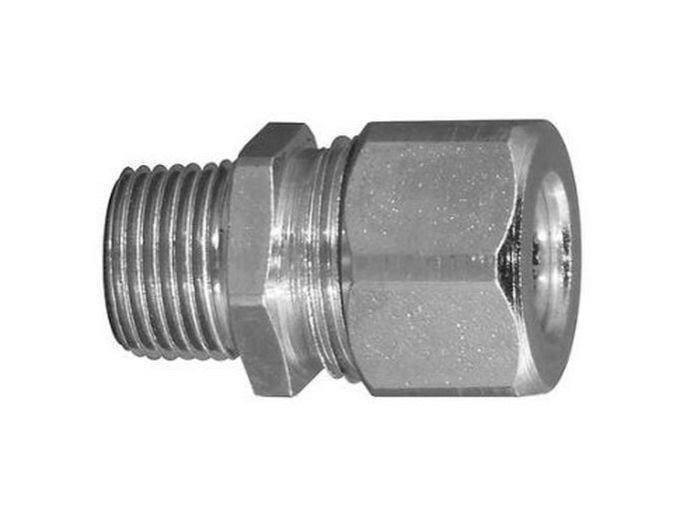

The APPLETON CG-3138S is a 3/8" steel straight cord connector. It provides a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Suitable for wet or dry locations, sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.

• Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range
• Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief
• Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution

Product Highlights

This steel straight cord connector offers liquidtight termination and strain relief for various jacketed power and control cables, ensuring secure electrical connections in diverse environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG-3138S

Technical Specifications

• Material: Machined Steel
• Cable Openings: 5/16 - 7/16 in
• Catalog ID: APPCG-3138S
• Connection Type: Threaded
• Trade Size: 3/8 in
• Type: Strain Relief
• Application: Liquidtight, Strain Relief, Wet/Dry Location
• Standard & Approvals: Class I, Division 2, Class II, Division 1 and 2, Class III, NEMA 3R, UL 514B, E14817 Listed, CSA C22.2 No 18.3, CSA 065178 Certified, RoHs Compliant
• Diameter: 3/8 in
• Diameter Range: 0.312 - 0.437 in
• Conduit Type: Liquid-Tight
• Accessory Type: Conduit Connectors
• Flexibility: Rigid
• Cord Size: 0.312 to 0.437 Inch
• Size: 0.94 Inch Dia x 0.81 Inch
• Thread Size: 1/4 Inch
• Color Coded Label: Yellow
• Manufacturer Part Number: CG-3138S
• Manufacturer: Appleton
• Product Series: CG
• Family Series: Appleton Cable Entries, CG Series
• Description: Straight Liquidtight Strain Relief Connector, Size: 3/8 IN, Conductor Range: 5/16 - 7/16 IN, Material: Machined Steel, Color: Yellow Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Dimensions: 0.94 IN Height, Standard: Class I, Di
• Hub Size: 3/8 NPT
• Number of Cables: 1
• Cable Style: Round
• Angle: Straight
• NEMA Rating: NEMA 3R
• Split Frame: No
• Cable Diameter Range: 0.31-0.44 "
• Composition: Metallic
• Hazardous Location: No
• Approvals: CSA, UL
