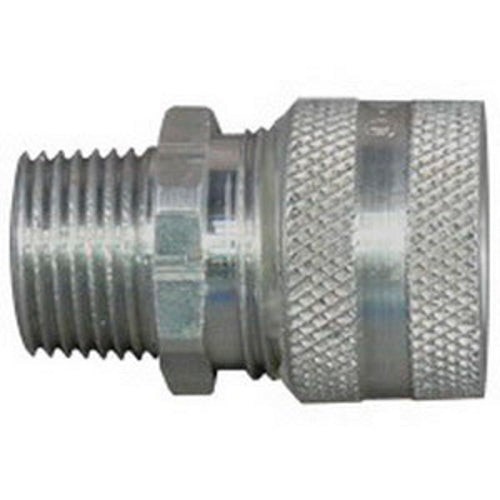

Appleton CG-3138 Strain Relief Connector 0.312 to 0.437 Inch

Product Description

The APPLETON CG-3138 strain relief connector provides liquidtight termination and strain relief for neoprene, hypalon, and PVC jacketed power and control cables and cords. It is suitable for use in wet or dry locations, sealing electrical connections against dust, dirt, oil, and moisture. The connector features a copper-free aluminum cap and a neoprene sealing grommet.

• Provides liquidtight termination
• Offers strain relief for flexible cords and cables
• Suitable for wet and dry locations

Product Highlights

The APPLETON CG-3138 ensures secure and sealed connections for power and control cables in various environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG-3138
• Country of Origin: MX

Technical Specifications

• Catalog Number: CG-3138
• MFR FULLNAME: APPLETON ELECTRIC COMPANY
• Mfrcode: APP
• PRODUCT NAME: CORD CONNECTOR
• Type: STRAIGHT
• Material: ALUMINUM BODY, COPPER FREE ALUMINUM CAP, NEOPRENE GROMMET, STEEL/TEFLON. WASHER
• APPROVAL: UL
• Size: 3/8 in
• Application: DRY/WET LOCATION, LIQUID TIGHT, STRAIN RELIEF
• CORD SIZE: 0.312 TO 0.437 INCH
• THREAD SIZE: 3/8 INCH
• ARRA Compliant: N
• Buy American Compliant: N
• Connection: Threaded Hub
• Country of Origin: MX
• EU RoHS Indicator: C
• NEMA Rating: NEMA 3R
• Standard: Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178
• Standards: Class I, Division 2, Class II, Division 1 and 2, Class III, NEMA 3R, UL 514B, E14817 Listed, CSA C22.2 No 18.3, CSA 065178 Certified, RoHs Compliant
• UNSPSC: 39121431
• UPC 11: 78138119120
• UPC 12: 781381191203
• Brand: Appleton
• Manufacturer: Appleton
• OD Max: 0.44 in.
• OD Min: 0.31 in.
• OD - min-max average: 0.40 in
• Connection Type: Straight Male
• Connection Rating: Liquid-tight
