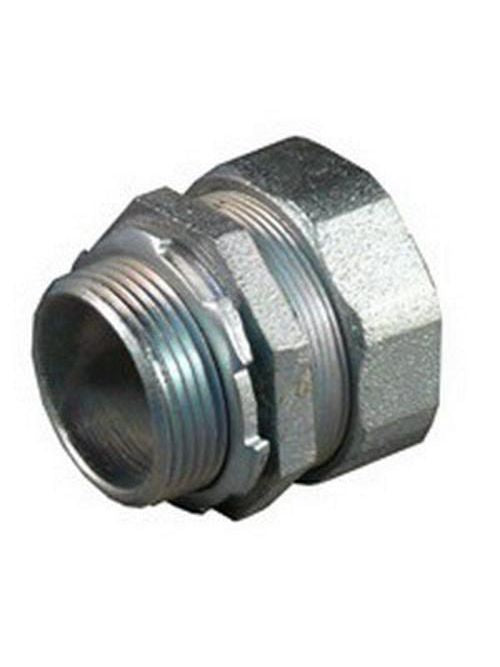

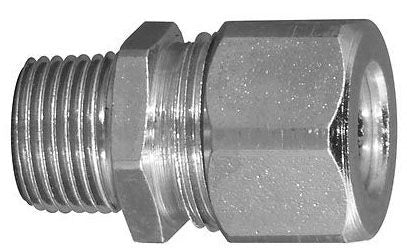

Appleton CG-2575S 3/4 Steel Liquidtight Cord Connector

Product Description

The Appleton CG-2575S is a 3/4 inch steel liquidtight cord connector designed for strain relief. It has a conductor range from one-fourth inch to three-eighths inch. Constructed from machined steel with a green label color code, it meets NEMA rating 3R for protection against moisture and dust. The connector features a threaded hub for secure connections and is ideal for use in wet or dry locations.

• Size: 3/4 inch
• Material: Machined Steel
• NEMA Rating: 3R

Product Highlights

This product provides effective strain relief and sealing for flexible Neoprene, Hypalon, and PVC jacketed power or control cords. Its design is ideal for commercial and industrial applications as well as hazardous locations.

Product Information

Standard Information

• Brand: Appleton Electric
• Catalog Number: CG-2575S

Technical Specifications

• Conductor Range: 1/4 - 3/8 inch
• Connection: Threaded Hub
• Material: Machined Steel
• Dimensions: 1.25 inch height
• Application: Suitable for flexible type Neoprene, Hypalon, and PVC jacketed cords
• NEMA Rating: 3R
• Standards: Class I, Division 2, Class II, Division 1 and 2, Class III, UL 514B
• UPC: 78138144929
