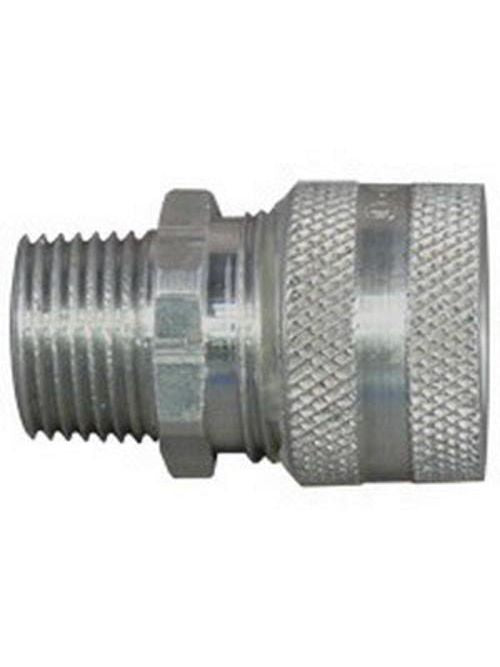

Appleton CG-250300 3 Aluminum Liquidtight Cord and Cable Connector

Product Description

The Appleton CG-250300 is a three-inch aluminum liquidtight cord and cable connector designed for both flexible neoprene and PVC jacketed cables. Its threaded hub provides a robust connection ensuring security in various working environments. This connector is NEMA rated for wet and dry locations, making it suitable for a wide range of applications.

• Conductor Range: Two and a half to two point eight four three inches
• Height: Four point zero six inches
• Material: Aluminum

Product Highlights

This connector supports electrical connections in commercial, industrial, and hazardous locations while meeting UL and CSA standards.

Product Information

Standard Information

• Catalog Number: CG-250300
• Manufacturer: Appleton Electric

Technical Specifications

• Size: 3 inches
• Application: For flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
• Connection: Threaded hub
• NEMA Rating: NEMA 3R
• Special Features: Seals connections against dust, dirt, oil, and water; color-coded identification label for easy use; neoprene grommet grips cable for strain relief
• Standard Compliance: Class I, Division 2, Class II, Division 1 and 2, Class III
• Country of Origin: Mexico
