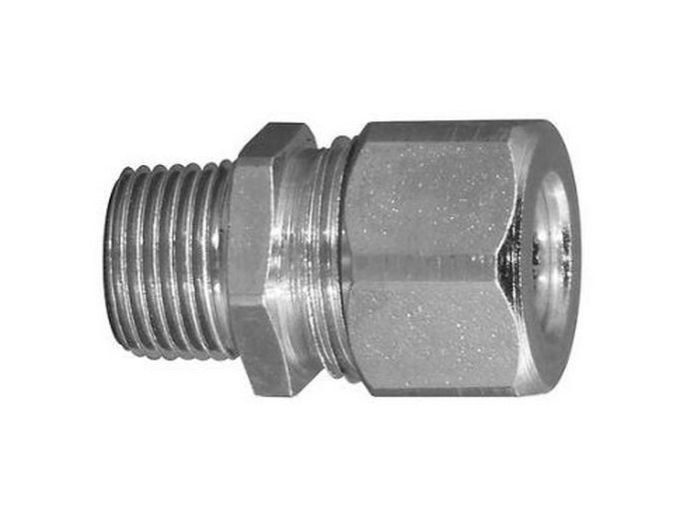

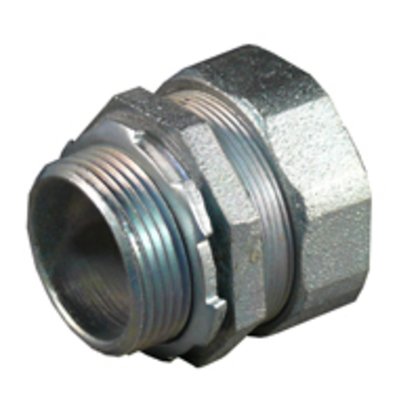

Appleton CG-1838S straight cord connector 3/8 steel

Product Description

The Appleton CG-1838S straight cord connector provides a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for use in wet or dry locations, it seals electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.

• Color coded identification label clearly states the catalog number and minimum/maximum cable diameter range for which the connector is designed
• Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
• Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion

Product Highlights

Appleton straight cord connector is suitable for use in wet or dry locations. It is made of machined steel and provides a liquidtight seal.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG-1838S

Technical Specifications

• Brand: Appleton
• Material: Machined Steel
• Trade Size: 3/8
• Application: For flexible type neoprene, hypalon and PVC jacketed power or control cord and cable
• Connection Type: Threaded Hub
• Type: Strain Relief
• Series: CG Series
• Diameter Range: 0.187 - 0.312 in
• Hub Size: 3/8 in.
• Connection Rating: Liquid-tight
• OD Max: 0.31 in.
• OD Min: 0.19 in.
• Cable Style: Round
• Angle: Straight
• NEMA Rating: NEMA 3R
• Split Frame: No
• Cable Diameter Range: 0.19-0.31 "
• Composition: Metallic
• Hazardous Location: No
• Approvals: CSA, UL
