Product Description

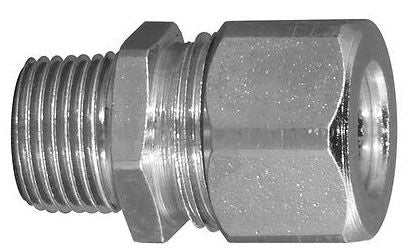

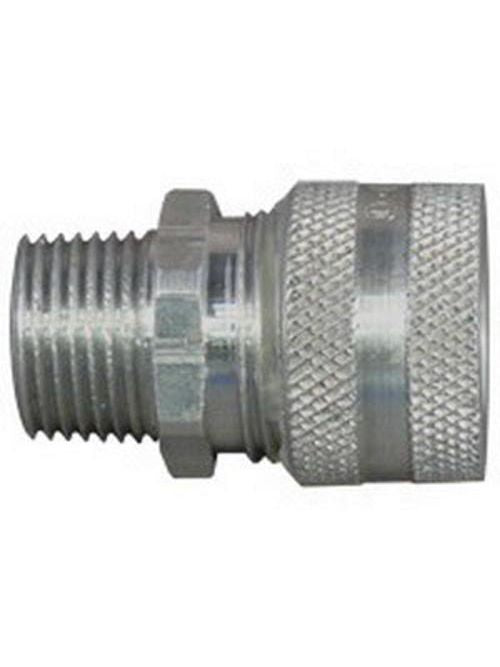

The Appleton CG-128150 is a 1-1/2 inch aluminum liquidtight cord and cable connector. It is designed for use in applications requiring strain relief for flexible type neoprene, hypalon, and PVC jacketed power or control cords. This connector supports conductor sizes ranging from 1.281 to 1.531 inches, ensuring a strong and secure fit.
- Material: Aluminum
- NEMA Rating: NEMA 3R
- Connection: Threaded Hub
Product Highlights
This connector is ideal for wet or dry environments. It effectively seals electrical connections against dust, dirt, oil, and moisture.
Product Information
Standard Information
-
Catalog Number: CG-128150
-
Manufacturer: Appleton Electric
Technical Specifications
-
Size: 1-1/2 inches
-
Conductor Range: 1.281 - 1.531 inches
-
Material: Aluminum
-
NEMA Rating: 3R
-
Connection Type: Threaded Hub
-
Dimensions: 2.56 inches height
-
Application: For flexible type neoprene, hypalon and PVC jacketed power or control cord and cable
-
Approval: UL 514B
