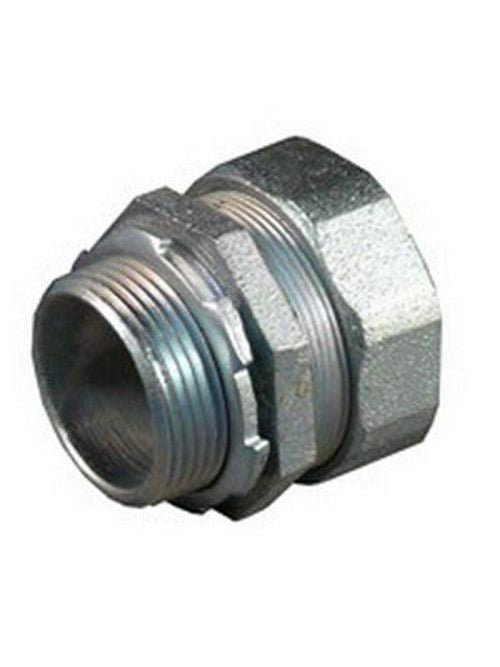

Appleton CG-1275S 3/4 Inch Steel Liquidtight Cord and Cable Connector

Product Description

The Appleton CG-1275S is a straight liquidtight strain relief connector designed for electrical applications. This connector is made of machined steel and is rated for use in both wet and dry locations. The 3/4 inch size fits cords with a conductor range of one-eighth to one-quarter inches. It features a threaded hub connection, ensuring a secure fit.

• Suitable for flexible type neoprene, Hypalon, and PVC jacketed power or control cords.
• NEMA rating of 3R protects against dust and water.
• Compact design with a height of 1-1/4 inches for easy installation.

Product Highlights

This connector is essential for maintaining secure electrical connections in commercial and industrial settings. It provides strain relief and protects internal wiring from external tension.

Product Information

Standard Information

• Brand: Appleton Electric
• Country of Origin: Mexico

Technical Specifications

• MPN: CG-1275S
• Size: 3/4 inch
• Material: Machined Steel
• Conductor Range: 1/8 - 1/4 inch
• NEMA Rating: 3R
• Connection: Threaded Hub
• Dimensions: 1-1/4 inches height
• Application: For flexible type neoprene, Hypalon, and PVC jacketed power or control cord and cable.
