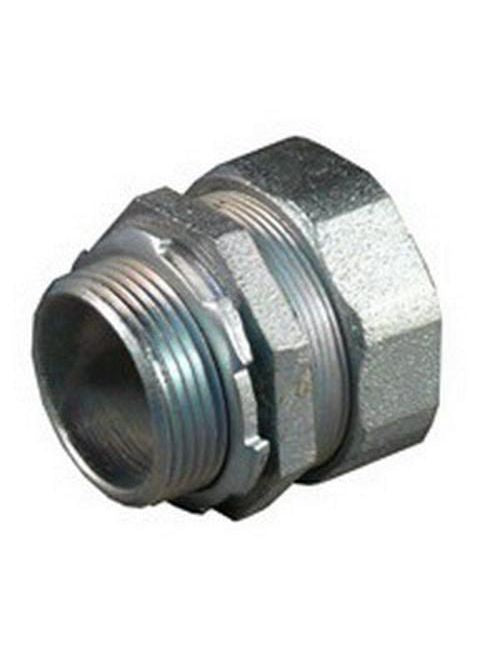

Appleton CG-1250S 1/2 Steel Liquidtight Cord and Cable Connector

Product Description

The Appleton CG-1250S is a straight liquidtight strain relief connector designed for use with flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. This connector is made of machined steel, ensuring durability and robust performance in various environments. It accommodates cable sizes from one-eighth inch to three-sixteenths inch, making it versatile for different applications.

• Conductor Range: 1/8 - 3/16 inches
• Material: Machined Steel
• Connection Type: Threaded Hub

Product Highlights

This connector features a NEMA rating of 3R, making it suitable for both wet and dry locations. The red label color coding helps identify the connector’s specifications clearly. It is designed to seal electrical connections against dust, dirt, oil, and moisture, ensuring reliable performance in an array of environments.

Product Information

Standard Information

• MPN: CG-1250S
• Brand: Appleton Electric

Technical Specifications

• Catalog Number: CG-1250S
• Material: Machined Steel
• NEMA Rating: NEMA 3R
• Application: For Flexible Type Neoprene, Hypalon and PVC Jacketed Power or Control Cord and Cable
• Conductor Range: 0.125 - 0.187 inches
• Size: 1/2 inch
• Connection Type: Threaded Hub
• Special Features: Seals electrical connections against moisture and eliminates leakage through a neoprene grommet and machined steel cap.
