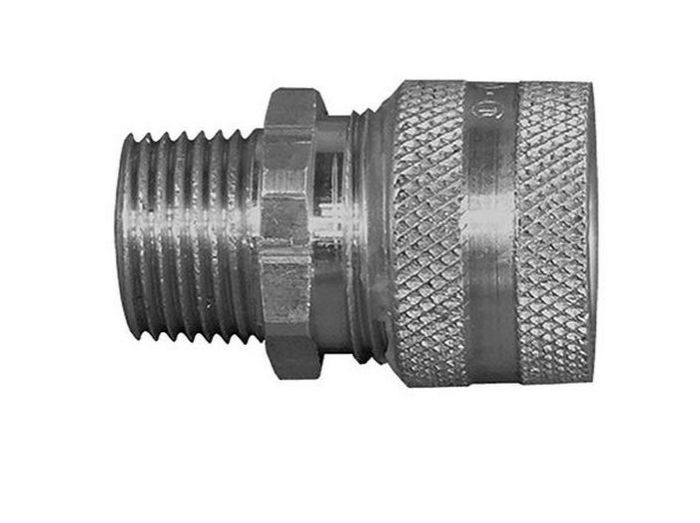

Appleton CG-1238 Liquidtight Strain Relief Cord and Cable Connector 3/8 Hub

Product Description

The APPLETON CG-1238 liquidtight strain relief cord and cable connector provides a liquidtight and strain relief termination. It is designed for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. This connector is suitable for use in wet or dry locations, sealing electrical connections against dust, dirt, oil, water, or moisture-containing atmospheres.

• Liquidtight strain relief termination
• For flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
• For use in wet or dry locations

Product Highlights

The APPLETON liquidtight strain relief cord and cable connector seals electrical connections against environmental factors.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG-1238

Technical Specifications

• Diameter: 3/8 in
• Material: Aluminum
• Diameter Range: 0.125 - 0.187 in
• Manufacturer Part Number: CG-1238
• Manufacturer: Appleton
• Product Series: CG
• Family Series: Appleton Cable Entries, CG Series
• Hub Size: 3/8 NPT
• Number of Cables: 1
• Cable Style: Round
• Angle: Straight
• NEMA Rating: NEMA 3R
• Split Frame: No
• Cable Diameter Range: 0.13-0.19 "
• Type: Bushing Grip with Strain Relief
• Composition: Metallic
• Hazardous Location: No
• Approvals: CSA, UL
