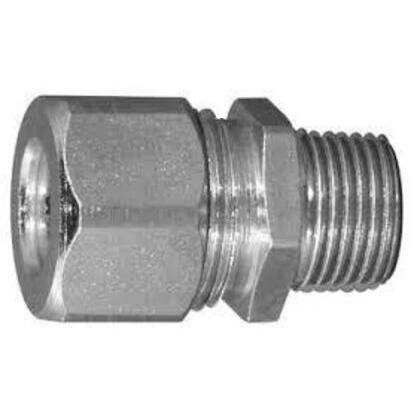

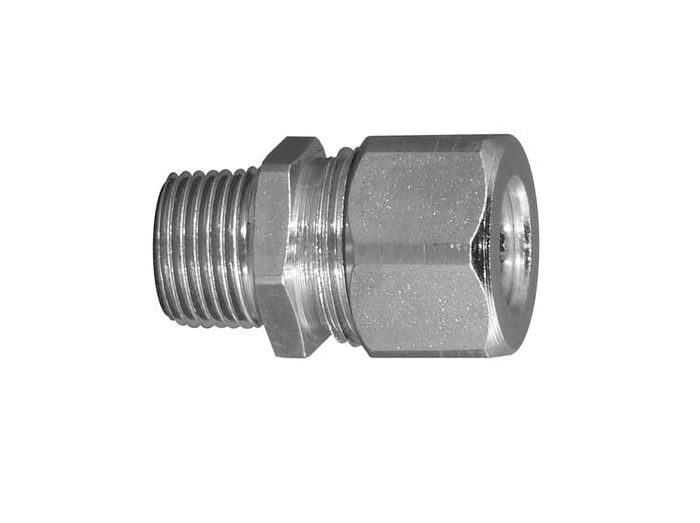

Appleton CG-115150S 1-1/2 inches Aluminum Straight Cord Connector

Product Description

The Appleton CG-115150S 1-1/2" Aluminum Straight Cord Connector provides a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. It is ideal for use in wet or dry locations, sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.

• Color coded identification label clearly states the catalog number and minimum/maximum cable diameter range for which the connector is designed
• Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
• Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion

Product Highlights

Appleton's cord and cable connectors meet the requirements of rugged service on all types of equipment in all non-hazardous areas.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG-115150S

Technical Specifications

• Material: Machined Steel
• Diameter: 1 1/2 in
• Diameter Range: 1.156 - 1.312 in
• Manufacturer Part Number: CG-115150S
• Manufacturer: Appleton
• Product Series: CG
• Family Series: Appleton Cable Entries, CG Series
• Description: Hardware
• Hub Size: 1/2 NPT
• Number of Cables: 1
• Cable Style: Round
• Angle: Straight
• NEMA Rating: NEMA 3R
• Split Frame: No
• Cable Diameter Range: 1.16-1.31 "
• Type: Strain Relief
• Composition: Metallic
• Hazardous Location: No
• Approvals: CSA, UL
• Finish: Natural
• Series: CG Series
• Trade Size: 1-1/2 in
• Application: For flexible type neoprene, hypalon and PVC jacketed power or control cord and cable
• Standard & Approvals: CSA C22.2 File No.18.3, CSA 065178, UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III, UL 514B File No. E14817 Listed
• Cable Openings: 1.156 to 1.3125 in
• Connection Type: Threaded Hub
