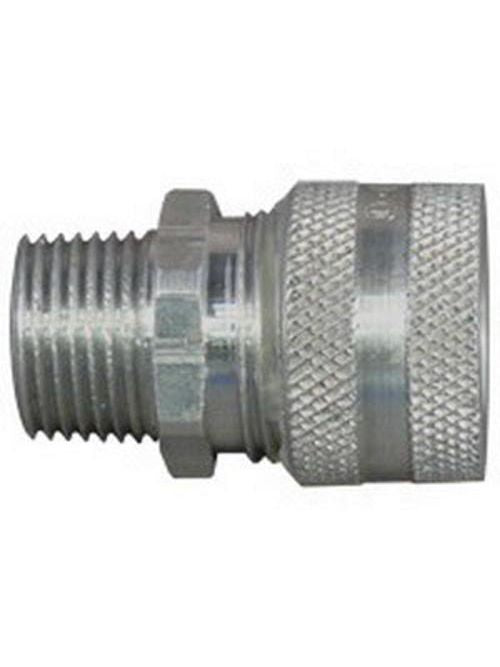

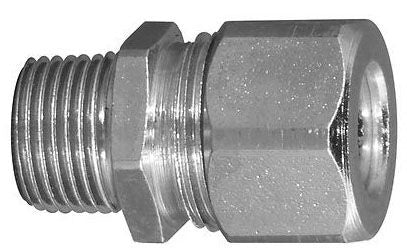

Appleton CG-115150 1-1/2 Aluminum Straight Cord Connector

Product Description

The Appleton CG-115150 is a straight liquidtight strain relief connector made from aluminum. It features a conductor range of one point one five six to one point three one two five inches and is designed for use with flexible type neoprene, hypalon, and PVC jacketed power or control cords and cables.

• Conductor range of one point one five six to one point three one two five inches
• NEMA rating NEMA three R for protection against dust and rain
• Threaded hub connection ensures a secure fit

Product Highlights

This connector is suitable for wet or dry locations, providing reliable sealing of electrical connections against moisture and environmental elements.

Product Information

Standard Information

• Catalog Number: CG-115150
• Manufacturer: Appleton Electric

Technical Specifications

• Material: Aluminum
• Trade Size: 1-1/2 inch
• Conductor Range: 1.156 - 1.3125 inches
• Connection: Threaded Hub
• NEMA Rating: 3R
• Dimensions: 2.19 inches height
• Standards: Class I, Division 2, Class II, Division 1 and 2, Class III
