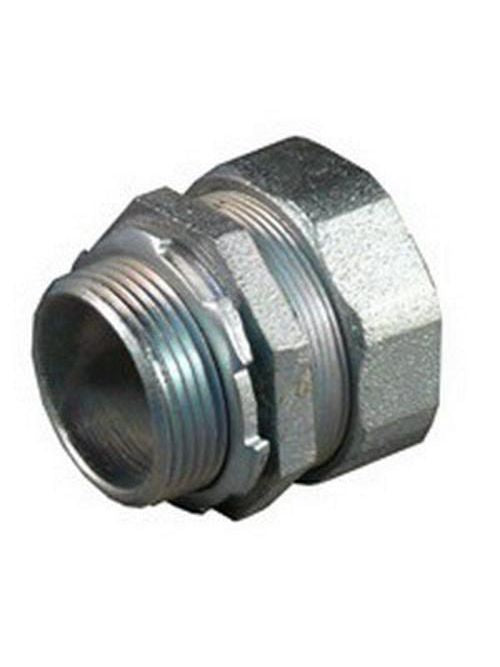

Appleton CG-112125S 1-1/4 Inch Steel Liquidtight Cord and Cable Connector

Product Description

The Appleton Group CG-112125S is a one and one-fourth inch steel liquidtight cord and cable connector. This connector is designed for use with flexible power or control cords and cables that have neoprene, Hypalon, or PVC jackets. It features a threaded hub connection for reliable fastening.

• Conductor range: one and one-eighth to one and one-fourth inches
• Constructed from machined steel with a brown label
• Rated NEMA 3R for outdoor use

Product Highlights

Ideal for wet and dry locations, this connector provides strain relief while ensuring a secure connection. It is suitable for both commercial and industrial applications.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Material: Machined Steel

Technical Specifications

• Catalog Number: CG-112125S
• Color: Brown Label
• NEMA Rating: 3R
• Connection: Threaded Hub
• Height: two point thirteen inches
• Usage Application: For flexible type neoprene, Hypalon and PVC jacketed cords
• Standards: Class I, Division 2, Class II, Division 1 and 2, Class III, UL 514B, CSA C22.2 No. 18.3
• UPC: 78138144953
• GTIN: 00781381449533
