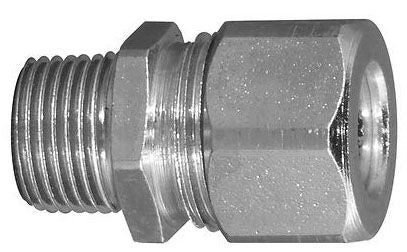

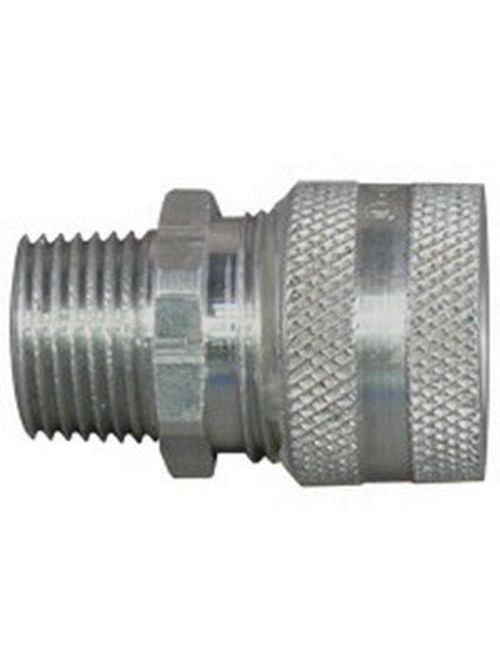

Appleton CG-112125 1-1/4 Aluminum Liquidtight Cord and Cable Connector

Product Description

The Appleton CG-112125 is a one and one-quarter inch aluminum liquidtight cord and cable connector designed for secure and reliable connections in electrical applications. This connector can accommodate conductor sizes ranging from one and one-eighth to one and one-quarter inches.

• Aluminum construction for durability.
• NEMA 3R rating for wet and dry location use.
• Threaded hub connection for easy installation.

Product Highlights

This connector is crafted for flexible neoprene, hypalon, and PVC jacketed power or control cords.

Product Information

Standard Information

• Brand: Appleton
• MPN: CG-112125

Technical Specifications

• Material: Aluminum
• Conductor Range: 1-1/8 to 1-1/4 inches
• Diameter: 2.13 inches
• Connection Type: Threaded Hub
• NEMA Rating: 3R
• Application: Wet or dry locations
• Standards: Class I, Division 2; Class II, Division 1 and 2; Class III, UL 514B, CSA C22.2 No. 18.3
