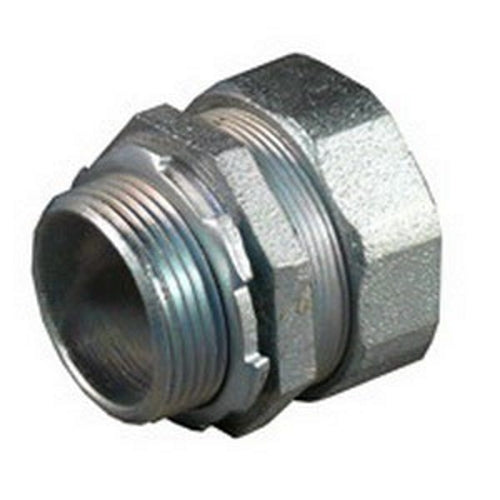

Appleton CG-100125S Straight Liquidtight Strain Relief Connector 1-1/4 inch

Product Description

The Appleton CG-100125S is a straight liquidtight strain relief connector designed for flexible type neoprene, hypalon, and PVC jacketed power or control cords. This connector features a threaded hub connection and is made from machined steel, ensuring durability in both wet and dry locations.

• Trade Size: 1-1/4 inches
• Conductor Range: 1 to 1-1/8 inches
• NEMA Rating: 3R

Product Highlights

The CG-100125S connector is suitable for sealing electrical connections against dust, dirt, oil, and moisture. It complies with industry standards for safety and performance, making it a reliable choice for contractors and electrical professionals.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Material: Machined Steel

Technical Specifications

• Catalog Number: CG-100125S
• Connection: Threaded Hub
• Height: 2.13 inches
• Application: For flexible type neoprene, hypalon, and PVC jacketed power or control cords
• Special Features: Neoprene sealing grommet for strain relief; color-coded identification label; UL and CSA approval
• Color: Blue Label
• Standard: Class I, Division 2; Class II, Division 1 and 2; Class III; UL 514B; CSA C22.2 No. 18.3
