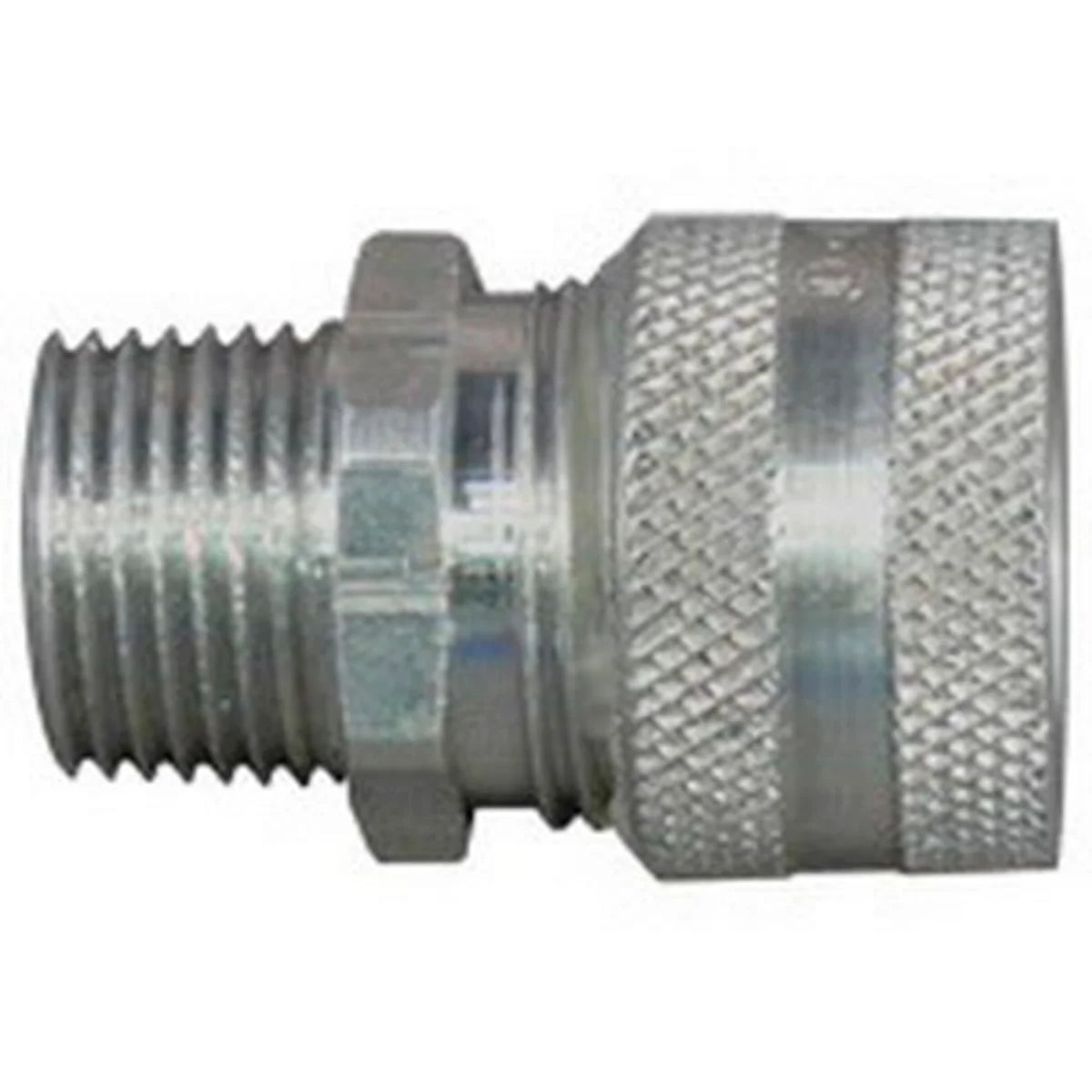

Appleton CG-100125 Straight Liquidtight Strain Relief Connector 1-1/4 inch 1 to 1.125 inch

Product Description

The Appleton CG-100125 is a straight liquidtight strain relief connector designed for electrical applications. This connector supports cables with a diameter ranging from one inch to one and one-eighth inches. Made from aluminum, it is sturdy and suitable for various settings.

• Conductor range: one inch to one and one-eighth inches
• NEMA rating: NEMA 3R for wet and dry locations
• Threaded hub connection for secure attachment

Product Highlights

This connector is ideal for flexible type neoprene, hypalon, and PVC jacketed power or control cords. It provides reliable strain relief while protecting internal wiring from external tension.

Product Information

Standard Information

• Brand: Appleton
• UPC: 781381192057

Technical Specifications

• Catalog Number: CG-100125
• Material: Aluminum
• NEMA Rating: 3R
• Application: For flexible type neoprene, hypalon and PVC jacketed power or control cord and cable
• Dimensions: Two point thirteen inches diameter
• Connection: Threaded Hub
• Manufacturer Standards: UL 514B, CSA C22.2
• Country of Origin: Mexico
